| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Type | |
| Withstanding Voltage |

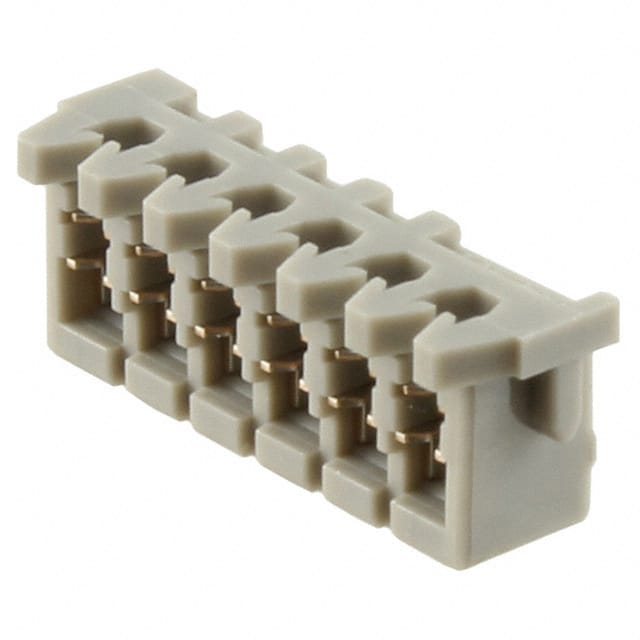

The JST 06KR-6H-P is a 6-position, 2.00mm pitch IDC socket connector from the KR series. It is a free-hanging (in-line) connector designed for termination of 26 AWG discrete wire via insulation displacement connection (IDC). The contacts are female socket type with tin-plated phosphor bronze material, and the housing is made of gray PA66 (UL94V-0).
Electrical ratings include a current capacity of 1A (AWG #26) and a voltage rating of 100V AC/DC. The contact resistance is 10 mΩ max initial, insulation resistance is 1000 MΩ min, and withstanding voltage is 800 VAC per minute. The operating temperature range is -25°C to +85°C, including temperature rise.
The connector employs a folded beam double-leaf contact construction and a twin U-slot insulation displacement section for reliable termination. It includes strain relief and is designed for interchangeability. The part is RoHS compliant and UL recognized (E60389, LR20812). Packaging is emboss tape.
6 positions.
2.00mm.
1A (for AWG #26 wire).
100V AC/DC.
Free hanging (in-line).
-25°C to +85°C (including temperature rise).
IDC (Insulation Displacement Connection).
