| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | 313 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination |

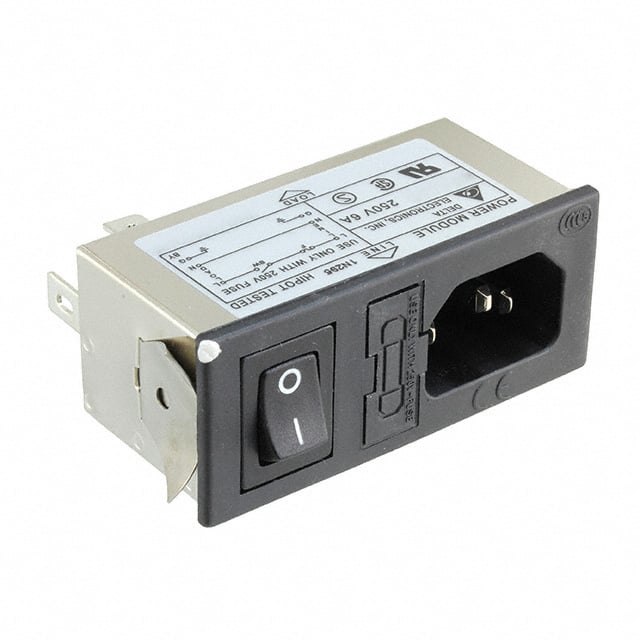

The Delta Electronics 06AN2 is a power entry module designed for AC power input applications. It features an IEC 320-C14 connector style with a receptacle accepting male blades. The module includes an integrated on-off switch and a fuse holder (fuse not included) for circuit protection.
This module mounts to a panel using a snap-in mechanism and requires a rectangular cutout of 66.00mm x 27.00mm. It accommodates panel thicknesses from 1.02mm to 1.78mm. Termination is via quick connect tabs for easy wiring.
The housing is made of material rated UL94 V-0 for flammability. The module carries approvals from CE, CSA, SEMKO, and UL, indicating compliance with international safety standards. It is classified as an unfiltered commercial-grade component.
The connector style is IEC 320-C14.
Yes, it includes an on-off switch.
Yes, it has a fuse holder but the fuse is not included.
Panel mount, snap-in.
Rectangular cutout of 66.00mm x 27.00mm.
UL94 V-0.
CE, CSA, SEMKO, and UL.
