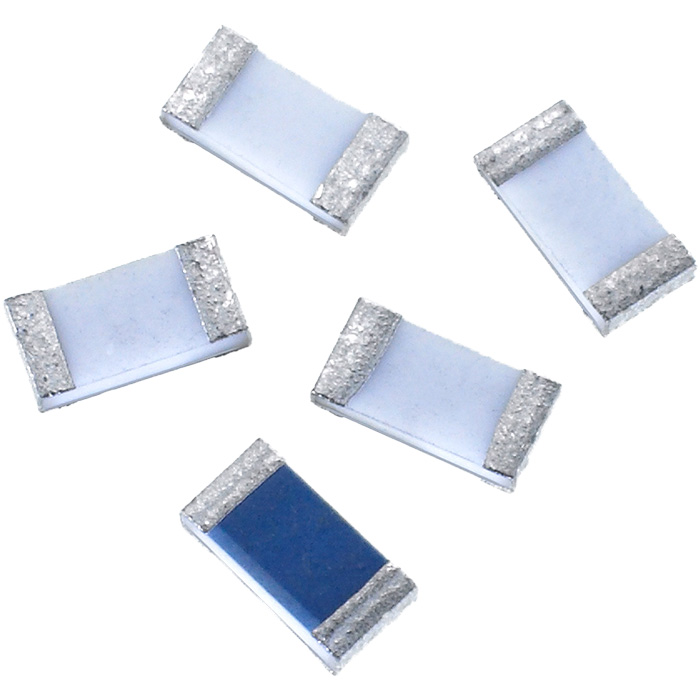

0686-0250-01 The Bel Fuse 0686-0250-01 is a fast-acting chip fuse designed for surface mount applications. It features a 0.25A current rating and a 63VDC/32VAC voltage rating.
Mfr Part #:

0686-0250-01

Available from 1 distributors
Mfr Name: Bel Fuse
Bel Fuse
The Bel Fuse 0686-0250-01 is a fast-acting chip fuse designed for surface mount applications. It features a 0.25A current rating and a 63VDC/32VAC voltage rating.
✓ Total Stock: 4,165 pcs
$ Price Range: $0.99

0686-0250-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4,165 pcs
On Request
4165 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0686-0250-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Fuse Type
Length
Mounting Type
Plating
Response Time
Width
View Similar Products (0)

0686-0250-01 Description

Short technical summary and product information.

This Bel Fuse C2Q Series chip fuse, part number 0686-0250-01, is a compact surface mount device designed for fast-acting overcurrent protection. It has a current rating of 0.25A and can handle up to 63VDC or 32VAC.



The fuse is constructed with nickel plating and comes in an 0603 case size, measuring 1.6mm in length and 0.81mm in width. Its fast blow response time ensures quick circuit interruption in fault conditions. The component is supplied in tape and reel packaging, with 5000 pieces per reel.



This fuse is suitable for various electronic applications requiring reliable and small-form-factor circuit protection. Its specifications make it a versatile choice for designs where space is a constraint and robust protection is needed.

0686-0250-01 Quick Information

Product Type: Chip Fuse
Series: C2Q
Canonical Name: Bel Fuse C2Q 250 Chip Fuse
Subcategory: Chip Fuse

0686-0250-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0686-0250-01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

0686-0250-01 Features

  • Fast-acting chip fuse for protection.
  • 0.25A current rating.
  • 63VDC and 32VAC voltage ratings.
  • Compact 0603 surface mount package.
  • Supplied in tape and reel packaging.

0686-0250-01 Applications

  • Provides overcurrent protection.
  • Suitable for surface mount designs.
  • Used in compact electronic devices.
  • Ideal for automated assembly.

0686-0250-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 0686-0250-01 fuse?

The current rating is 0.25A.

What is the maximum DC voltage for the 0686-0250-01 fuse?

The maximum DC voltage is 63VDC.

What is the maximum AC voltage for the 0686-0250-01 fuse?

The maximum AC voltage is 32VAC.

What is the interrupting rating of the 0686-0250-01 fuse?

The interrupting rating is 50A DC and 35A AC.

What type of fuse is the 0686-0250-01?

It is a fast blow chip fuse.

What is the case size of the 0686-0250-01 fuse?

The case size is 0603.

How is the 0686-0250-01 fuse packaged?

It is packaged in tape and reel with 5000 pieces per reel.
