| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

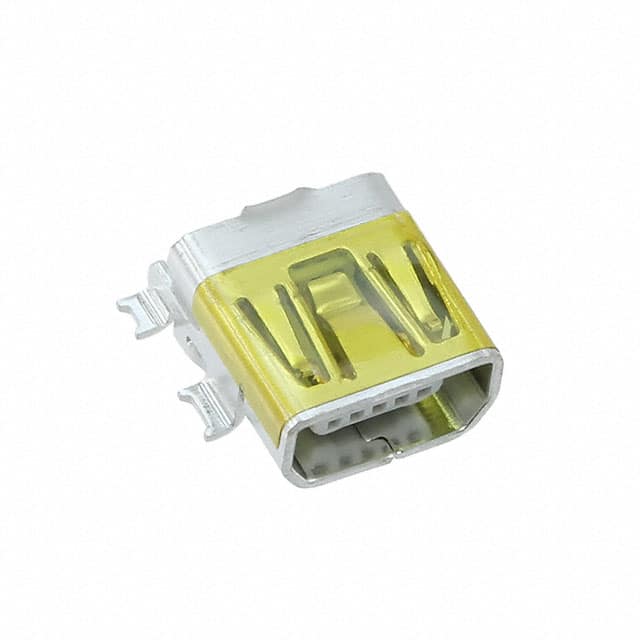

The Molex 0678038020 is a USB 2.0 Mini AB receptacle connector designed for surface mount right angle mounting. It features 5 contacts in a single port configuration and is fully shielded for EMI protection.
This connector supports USB 2.0 OTG specifications and is rated for 1A current at 30V. It includes board guide and solder retention features for reliable assembly. The operating temperature range is 0°C to 50°C.
The receptacle is terminated via solder and is mounted horizontally. It is suitable for applications requiring a compact USB interface with board guide and solder retention for mechanical stability.
USB - mini AB receptacle.
5 contacts.
1 A.
30 V AC/DC.
Surface mount, right angle.
