| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage | |
| Voltage Rating |

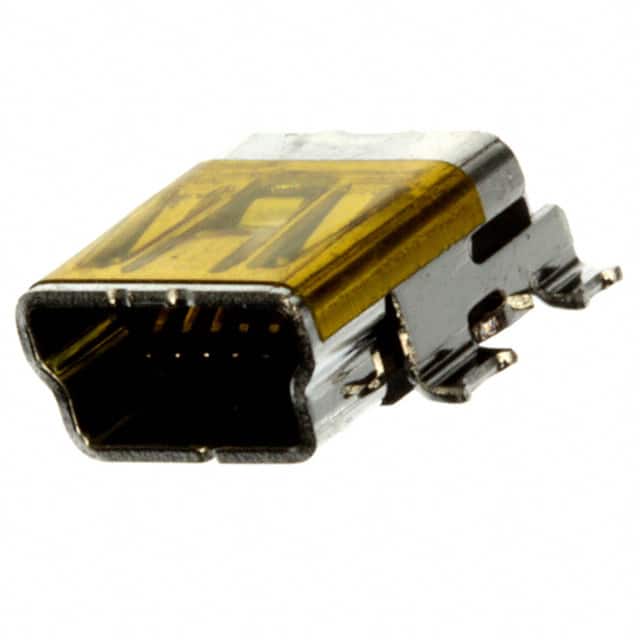

The Molex 0675031020 is a USB 2.0 Mini B receptacle connector designed for surface mount, right angle mounting. It features 5 contacts and a single port, with a horizontal mounting orientation. The connector is shielded for EMI protection and includes a board guide for reliable alignment during assembly.
Rated for 1A current and 30VAC/DC, this connector supports USB 2.0 OTG specifications. It operates within a temperature range of 0°C to 50°C, making it suitable for standard consumer and industrial environments. Termination is via solder, ensuring a robust connection to the PCB.
This component is commonly used in portable devices, data transfer interfaces, and embedded systems requiring a compact USB Mini B connection. The right-angle design helps save board space in space-constrained applications.
USB - mini B receptacle.
1 A.
30VAC/DC.
Surface Mount, Right Angle.
5 contacts.
Yes, it is shielded.
USB 2.0 OTG.
