| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage |

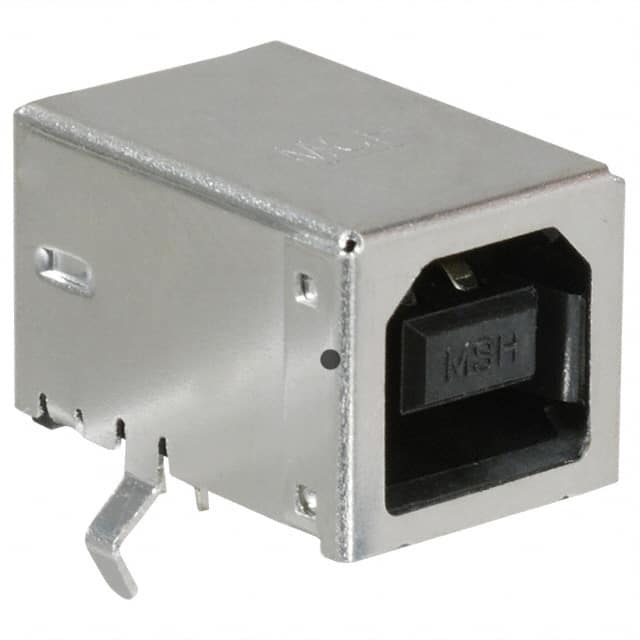

The Molex 0670688000 is a USB 2.0 Type-B receptacle connector designed for reliable data and power transmission. It features 4 contacts in a single port configuration, with a right angle through hole mounting style for horizontal placement on PCBs. The connector is shielded to reduce electromagnetic interference and includes a board lock feature for secure attachment.
Electrical ratings include a current capacity of 1.5A and a voltage rating of 30V, suitable for standard USB 2.0 applications. The operating temperature range is 0°C to 50°C, and the connector is rated for 1500 mating cycles, ensuring durability in repeated use.
The termination style is solder, making it compatible with standard through hole soldering processes. The connector is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
4 positions.
1.5 A.
30 V.
Through hole, right angle.
USB-B (USB Type-B) receptacle.
Yes, it is shielded.
1500 cycles.
