Mfr Part #:

0639-0-15-15-34-27-10-0

Name: 0639-0-15-15-34-27-10-0
Brand: Mill-Max Manufacturing
SKU: 0639-0-15-15-34-27-10-0

Description:

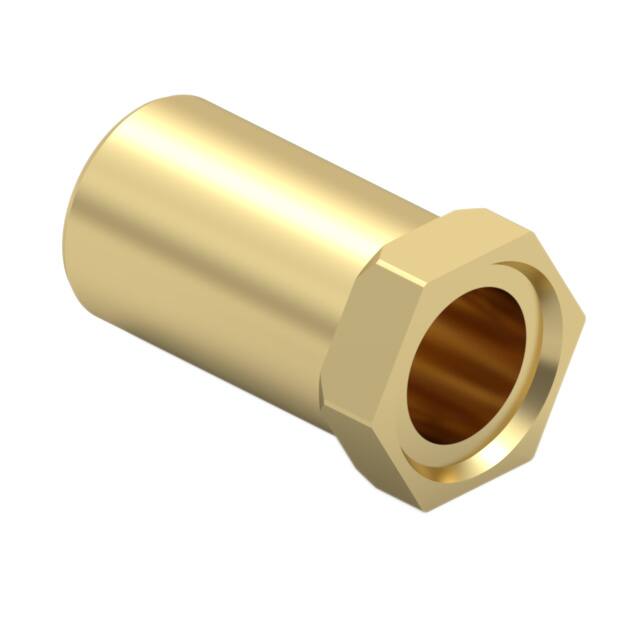

ZERO PROFILE RECEPTACLE FOR LEAD

Stock on Request

0639-0-15-15-34-27-10-0 Description

Short technical summary and product information.

ZERO PROFILE RECEPTACLE FOR LEAD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Mill-Max Manufacturing
Accepts Pin Diameter	0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.089" (2.26mm)
Length	0.140" (3.56mm)
Mounting Hole Diameter	0.091" (2.31mm)
Pin Hole Diameter	0.064" (1.63mm)
Socket Depth	0.125" (3.18mm)
Tail Type	No Tail
Termination	Press-Fit
