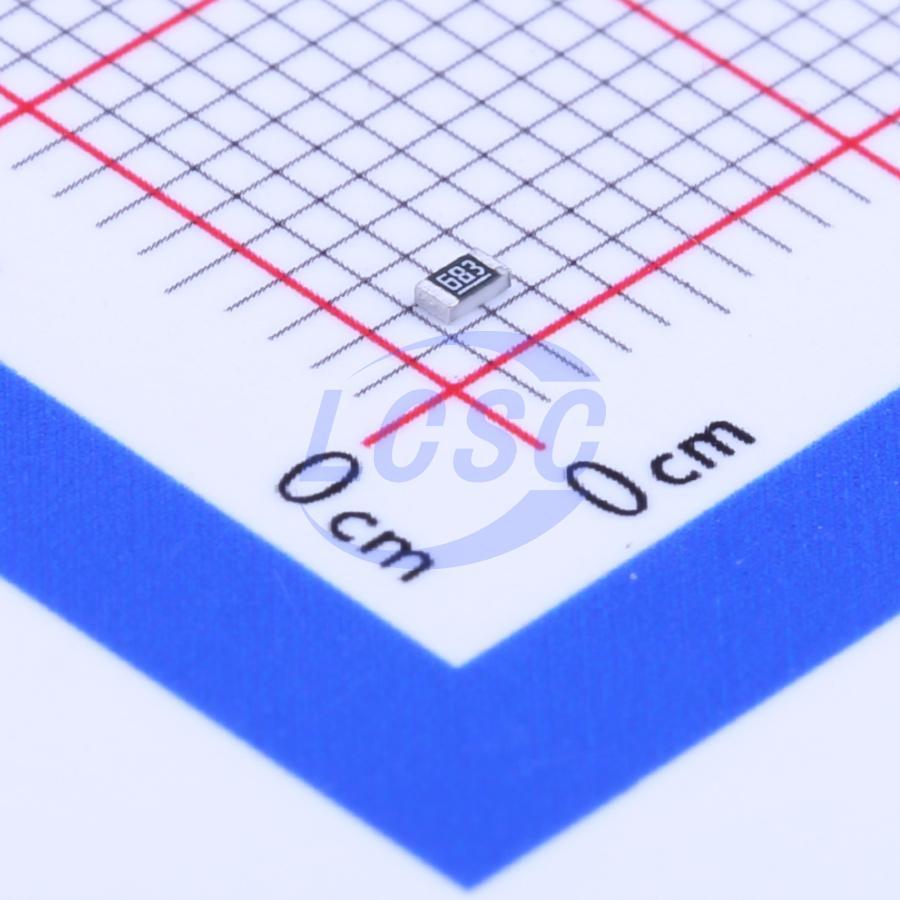

0603WAF6802T5E The Uniroyal Electronics 0603WAF6802T5E is a surface mount chip resistor with 6.8k Ohm resistance and ±1% tolerance. It is rated for 1/8W power.
Mfr Part #:

0603WAF6802T5E

Available from 1 distributors
Mfr Name: Uniroyal Electronics
Uniroyal Electronics
The Uniroyal Electronics 0603WAF6802T5E is a surface mount chip resistor with 6.8k Ohm resistance and ±1% tolerance. It is rated for 1/8W power.
✓ Total Stock: 94 pcs
$ Price Range: $0.00

0603WAF6802T5E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0603WAF6802T5E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Operating Temperature
Power Rating
Resistance
SVHC Present
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

0603WAF6802T5E Description

Short technical summary and product information.

This Uniroyal Electronics 0603WAF6802T5E is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 6.8 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor has a power rating of 1/8W and a temperature coefficient of ±100ppm/°C, operating within a temperature range of -55°C to +155°C. The component comes in an industry-standard 0603 (1608 Metric) package, suitable for automated surface mount assembly processes.



Its construction and specifications make it suitable for general-purpose applications where reliable resistance values are critical. The component is supplied in a standard package quantity of 3000 pieces.

0603WAF6802T5E Quick Information

Product Type: Chip Resistor
Canonical Name: 0603WAF6802T5E Chip Resistor - Surface Mount
Subcategory: Chip Resistor - Surface Mount

0603WAF6802T5E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0603WAF6802T5E Estimated Pricing

Qty Low High
1+ $0.00 $0.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

0603WAF6802T5E Features

  • 6.8 kOhm resistance with ±1% tolerance.
  • Rated for 1/8W power dissipation.
  • Operating temperature range of -55°C to +155°C.
  • Standard 0603 surface mount package.
  • ±100ppm/°C temperature coefficient.

0603WAF6802T5E Applications

  • Used in general purpose electronic circuits.
  • Ideal for voltage divider networks.
  • Suitable for current limiting applications.
  • Common in consumer electronics and automotive.

0603WAF6802T5E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value?

6.8 kΩ

What is the tolerance?

±1%

What is the power rating?

1/8W

What is the temperature coefficient?

±100ppm/°C

What is the package/case size?

0603 (1608 Metric)

What is the mounting type?

Surface Mount

What is the operating temperature range?

-55°C to +155°C
