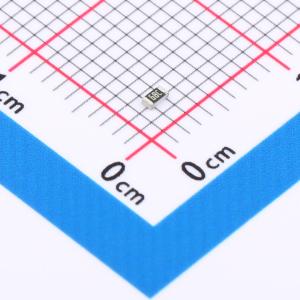

0603WAF4992T5E The Uniroyal Electronics 0603WAF4992T5E is a thick film chip resistor with a resistance of 49.9kΩ and ±1% tolerance. It is designed for SMT applications.
Mfr Part #:

0603WAF4992T5E

Available from 1 distributors
Mfr Name: Uniroyal Electronics
Uniroyal Electronics
The Uniroyal Electronics 0603WAF4992T5E is a thick film chip resistor with a resistance of 49.9kΩ and ±1% tolerance. It is designed for SMT applications.
✓ Total Stock: 60 pcs
$ Price Range: $0.05

0603WAF4992T5E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0603WAF4992T5E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Power Rating
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
Working Voltage
View Similar Products (0)

0603WAF4992T5E Description

Short technical summary and product information.

The Uniroyal Electronics 0603WAF4992T5E is a surface-mount thick film chip resistor. It offers a resistance value of 49.9kΩ with a tight tolerance of ±1%. The component is rated for 100mW of power and operates within a temperature range of -55℃ to +155℃.



This resistor is suitable for wave soldering and reflow soldering processes. Its small size and light weight contribute to reduced assembly costs and compatibility with automated placement machines. The device is packaged in a 0603 case size and supplied on tape and reel.



Key electrical characteristics include a working voltage of 75V and a temperature coefficient of ±100ppm/℃. The thick film technology ensures reliable performance for various electronic applications.

0603WAF4992T5E Quick Information

Product Type: Chip Resistor - Surface Mount
Series: WAF
Canonical Name: Uniroyal Electronics 0603WAF4992T5E Thick Film Chip Resistor
Subcategory: Surface Mount

0603WAF4992T5E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0603WAF4992T5E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

0603WAF4992T5E Features

  • 49.9kΩ resistance with ±1% tolerance.
  • 100mW power rating suitable for SMT.
  • Wide operating temperature range.
  • 0603 SMT package for automated assembly.
  • Thick film technology for reliability.

0603WAF4992T5E Applications

  • Ideal for general purpose circuit applications.
  • Suitable for automated SMT assembly lines.
  • Used in compact electronic devices.
  • Provides stable resistance in varying temperatures.

0603WAF4992T5E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 0603WAF4992T5E?

The resistance value is 49.9kΩ.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of the 0603WAF4992T5E?

The power rating is 100mW.

What is the temperature coefficient of this resistor?

The temperature coefficient is ±100ppm/°C.

What is the package size of the 0603WAF4992T5E?

The package size is 0603.

What is the operating temperature range?

The operating temperature range is -55°C to +155°C.

What is the working voltage of this resistor?

The working voltage is 75V.
