| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Power Rating | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance | |
| Type | |
| Voltage Supply |

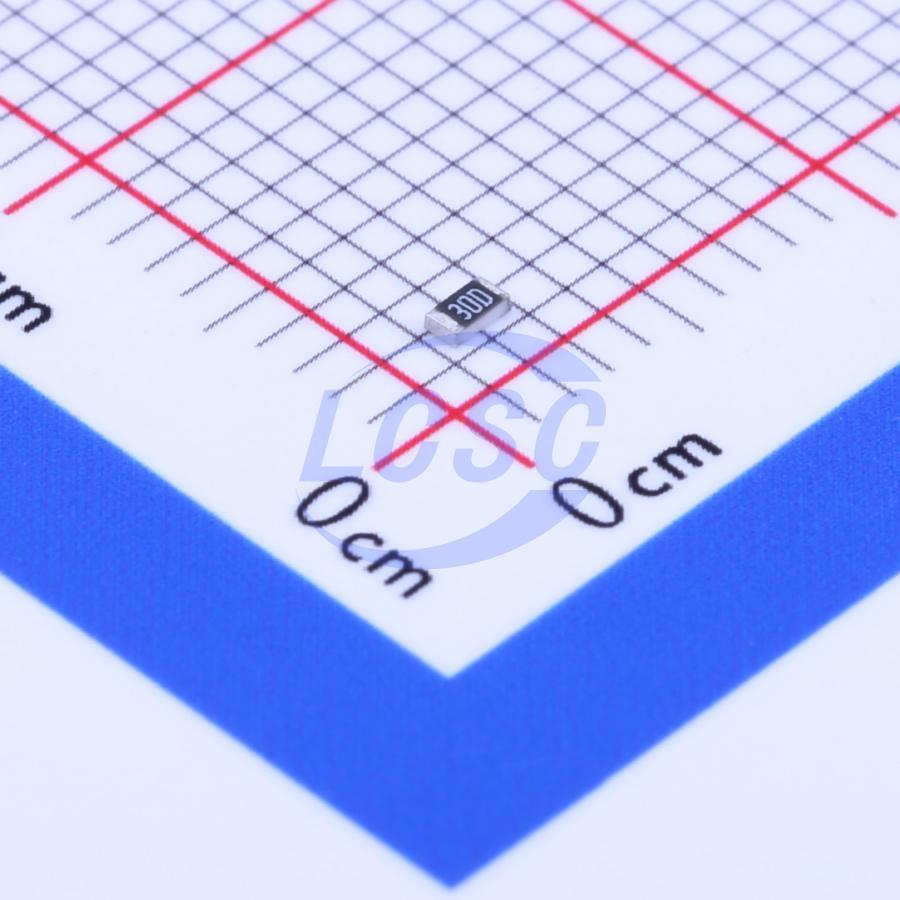

This Uniroyal Electronics 0603WAF2003T5E is a surface mount thick film resistor designed for various electronic applications. It offers a resistance value of 200kΩ with a tight tolerance of ±1% and a power rating of 100mW. The operating temperature range is -55℃ to +155℃, making it suitable for demanding environments.
The component features a standard 0603 package size, ideal for automated SMT assembly processes. Its thick film construction ensures reliability and stability in performance. The maximum supply voltage is rated at 75V, and it has a temperature coefficient of ±100ppm/℃.
This resistor is a component within the broader category of chip resistors, commonly used in signal conditioning, filtering, and current limiting circuits. Its specifications make it a versatile choice for general-purpose and specialized electronic designs where precise resistance values and stable operation are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.00 | $0.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 200kΩ.
The tolerance is ±1%.
The power rating is 100mW.
The temperature coefficient is ±100ppm/°C.
The package size is 0603.
The maximum operating voltage is 75V.
The operating temperature range is -55°C to +155°C.
