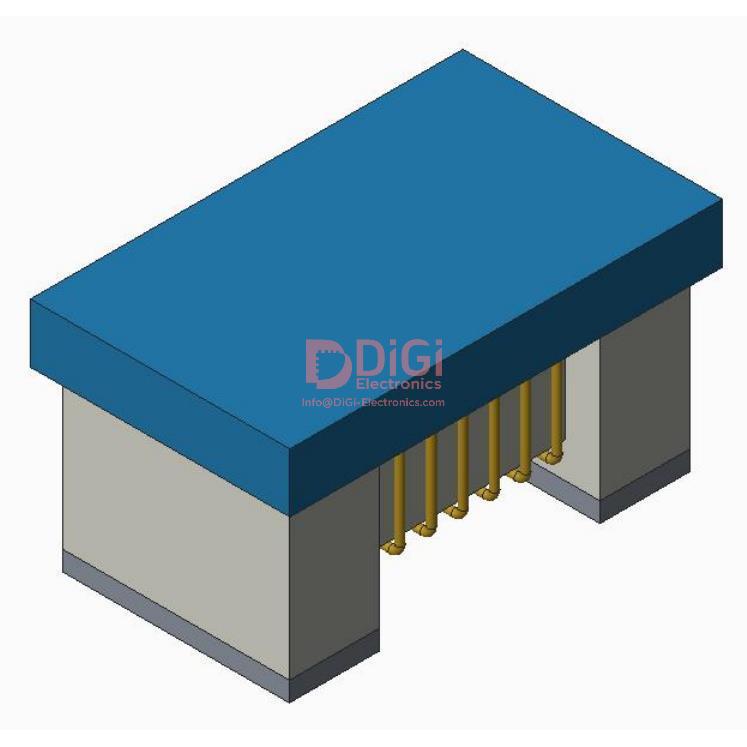

0603CS5N1EGTS The Delta Electronics 0603CS-5N1EGTS is a wirewound, unshielded fixed inductor with a 5.1nH inductance and a 700mA current rating. It features a ceramic core and is designed for surface mounting.
Mfr Part #:

0603CS5N1EGTS

Available from 1 distributors
Mfr Name: Delta Electronics
Delta Electronics
The Delta Electronics 0603CS-5N1EGTS is a wirewound, unshielded fixed inductor with a 5.1nH inductance and a 700mA current rating. It features a ceramic core and is designed for surface mounting.
✓ Total Stock: 1,356 pcs
$ Price Range: $0.20

0603CS5N1EGTS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,356 pcs
On Request
1356 pcs On Request 1 On Request On Request 832 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0603CS5N1EGTS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance
Inductance
Mounting Type
Operating Temperature
SVHC Present
Self Resonant Frequency
Shielding
Tape & Reel
Tolerance
Type
View Similar Products (0)

0603CS5N1EGTS Description

Short technical summary and product information.

This Delta Electronics 0603CS-5N1EGTS is a fixed inductor from the 0603CS series. It is a wirewound, unshielded type with a ceramic core, offering an inductance of 5.1nH and a tolerance of ±2%. The inductor is rated for a current of 700mA and has a DC resistance of 160mΩ.



Designed for surface mounting, this component operates within a temperature range of -40°C to 125°C. Its self-resonant frequency is 5.8GHz, and it has a Q factor of 20 at 250MHz. The inductor is supplied in tape and reel packaging.



Key electrical characteristics include its nominal inductance of 5.1nH at 250 MHz, a maximum current rating of 700mA, and a DC resistance of 160mΩ. The operating temperature range is -40°C to 125°C, making it suitable for various electronic applications.

0603CS5N1EGTS Quick Information

Product Type: Fixed Inductor
Series: 0603CS
Canonical Name: 0603CS-5N1EGTS Fixed Inductor
Subcategory: Fixed Inductors

0603CS5N1EGTS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0603CS5N1EGTS Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

0603CS5N1EGTS Features

  • Wirewound unshielded ceramic core inductor.
  • 5.1nH inductance with ±2% tolerance.
  • Rated for 700mA current.
  • Low DC resistance of 160mΩ.
  • Surface mountable in tape and reel.

0603CS5N1EGTS Applications

  • RF signal filtering and matching circuits.
  • High frequency oscillator tank circuits.
  • Impedance matching in wireless communication modules.
  • DC-DC converter output filtering.
  • Broadband network interface circuits.

0603CS5N1EGTS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 0603CS5N1EGTS?

The inductance is 5.1 nH at 250 MHz.

What is the current rating of this inductor?

The rated current is 700 mA.

What is the DC resistance of the 0603CS5N1EGTS?

The DC resistance is 160 mΩ.

What is the self-resonant frequency of this inductor?

The self-resonant frequency is 5.8 GHz.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

Is the 0603CS5N1EGTS shielded or unshielded?

It is unshielded.

What is the mounting type for this inductor?

It is a surface mount component.
