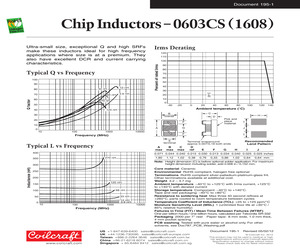

0603CS-2N2XJLW The Coilcraft 0603CS-2N2XJLW is a fixed RF inductor with a ceramic core. It offers 2.2 nH inductance and a maximum DC current rating of 100 mA.
Mfr Part #:

0603CS-2N2XJLW

Available from 6 distributors
Mfr Name: Coilcraft
Coilcraft
The Coilcraft 0603CS-2N2XJLW is a fixed RF inductor with a ceramic core. It offers 2.2 nH inductance and a maximum DC current rating of 100 mA.
✓ Total Stock: 4,758 pcs
$ Price Range: $0.20

0603CS-2N2XJLW Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0603CS-2N2XJLW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Core Material
Inductance
Industrial Grade
Lead Style
Medical Grade
Military Grade
Operating Temperature Range
Self Resonant Frequency
Tape & Reel
Termination Style
Test Frequency
Tolerance
View Similar Products (0)

0603CS-2N2XJLW Description

Short technical summary and product information.

The Coilcraft 0603CS-2N2XJLW is a fixed inductor designed for RF applications. It features a ceramic core and a compact 0603 (1608 metric) SMD/SMT package, making it suitable for surface-mount designs.



This inductor provides an inductance value of 2.2 nH with a tolerance of 5%. It has a minimum Q factor of 44 at 250 MHz and a self-resonant frequency of 12.5 GHz. The maximum DC current rating is 100 mA.



The operating temperature range for this component is -40 C to +125 C. The package dimensions include a case length of 1.8 mm and a case height of 1.02 mm. It is supplied in a factory pack quantity of 2000 units.

0603CS-2N2XJLW Quick Information

Product Type: RF Inductor
Series: 0603CS
Canonical Name: Coilcraft 0603CS-2N2XJLW RF Inductor
Subcategory: RF Inductors

0603CS-2N2XJLW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0603CS-2N2XJLW Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

0603CS-2N2XJLW Features

  • Ceramic core RF inductor.
  • 2.2 nH inductance with 5% tolerance.
  • 100 mA maximum DC current rating.
  • 0603 (1608 metric) SMD/SMT package.
  • Wide operating temperature range.

0603CS-2N2XJLW Applications

  • Suitable for RF signal filtering.
  • Ideal for high-frequency circuits.
  • Used in compact electronic devices.
  • Surface-mount assembly compatible.

0603CS-2N2XJLW FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 0603CS-2N2XJLW?

The inductance value is 2.2 nH.

What is the tolerance for the 0603CS-2N2XJLW inductor?

The tolerance is 5 %.

What is the maximum DC current rating for this Coilcraft inductor?

The maximum DC current rating is 100 mA.

What is the self-resonant frequency of the 0603CS-2N2XJLW?

The self-resonant frequency is 12.5 GHz.

What is the operating temperature range for the 0603CS-2N2XJLW?

The operating temperature range is -40 C to +125 C.

What type of core material does the 0603CS-2N2XJLW use?

It uses a ceramic core material.

What are the package dimensions of the 0603CS-2N2XJLW?

The package is 0603 (1608 metric) with a case length of 1.8 mm and a case height of 1.02 mm.
