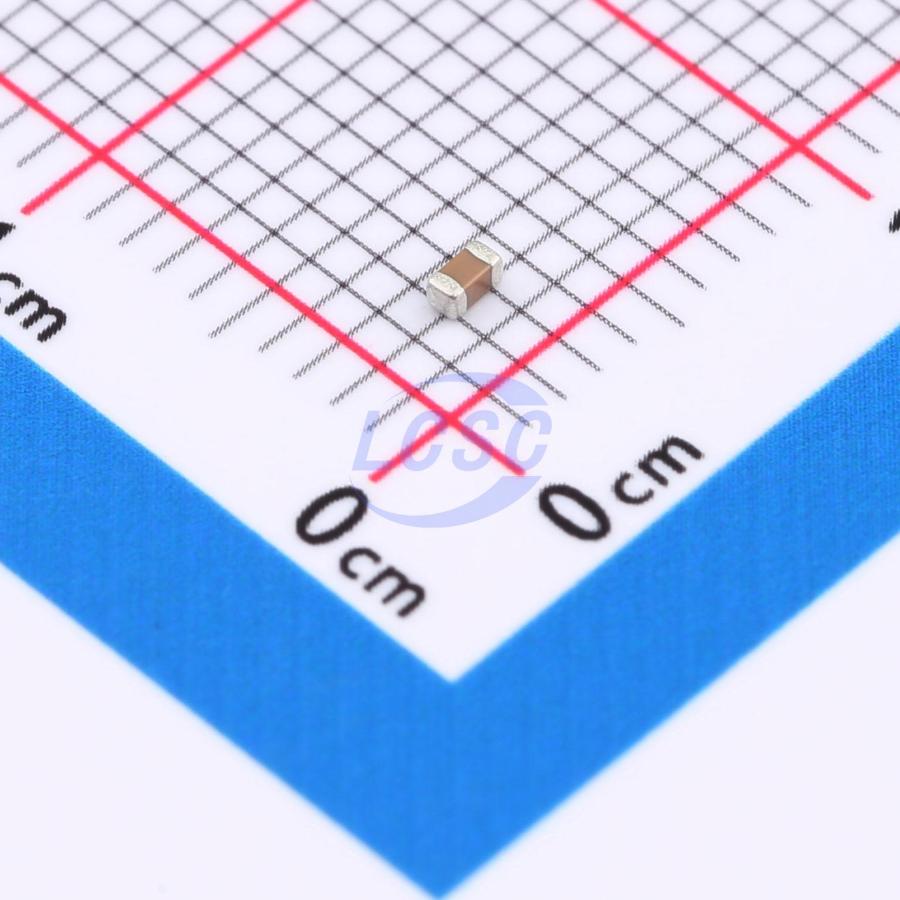

0603CG471J500NT The Yageo 0603CG471J500NT is a ceramic capacitor with a capacitance of 470 pF and a voltage rating of 50V. It features a C0G dielectric and a 0603 package size.
Mfr Part #:

0603CG471J500NT

Available from 1 distributors
Mfr Name: FH
FH
The Yageo 0603CG471J500NT is a ceramic capacitor with a capacitance of 470 pF and a voltage rating of 50V. It features a C0G dielectric and a 0603 package size.
✓ Total Stock: 3,934 pcs
$ Price Range: $0.10

0603CG471J500NT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3,934 pcs
On Request
3934 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0603CG471J500NT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Dielectric Material
Dimensions
Lead Style
Mounting Type
Operating Temperature
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

0603CG471J500NT Description

Short technical summary and product information.

This Yageo ceramic capacitor, part number 0603CG471J500NT, offers a capacitance of 470 pF with a tight tolerance of ±5%. It is designed for applications requiring stable performance, indicated by its C0G (NP0) dielectric material, which provides excellent temperature stability.



The capacitor has a DC voltage rating of 50V and operates within a temperature range of -55°C to 125°C. Its compact 0603 package size (1.6 x 0.8 x 0.8 mm) makes it suitable for surface mounting on printed circuit boards, facilitating miniaturization in electronic designs.



The C0G dielectric is known for its low loss and high stability across temperature and voltage, making this component ideal for frequency-dependent circuits, timing applications, and filtering where precise capacitance values are critical. The standard tape and reel packaging contains 4000 units, suitable for automated assembly processes.

0603CG471J500NT Quick Information

Product Type: Ceramic Capacitor
Series: Yageo_C_Class 1 NPO
Canonical Name: Yageo CC0603JRNPO9BN471 Ceramic Capacitor
Subcategory: Multilayer Ceramic Capacitor (MLCC)

0603CG471J500NT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0603CG471J500NT Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

0603CG471J500NT Features

  • 470 pF capacitance with ±5% tolerance.
  • Rated for 50V DC operation.
  • Stable C0G (NP0) dielectric material.
  • Compact 0603 surface mount package.
  • Wide operating temperature range.

0603CG471J500NT Applications

  • Ideal for stable filtering circuits.
  • Suitable for timing applications.
  • Used in RF signal processing.
  • Applicable in temperature-sensitive designs.
  • General purpose electronic circuits.

0603CG471J500NT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the 0603CG471J500NT capacitor?

The capacitance is 470 pF.

What is the voltage rating for the 0603CG471J500NT ceramic capacitor?

The DC voltage rating is 50V.

What is the tolerance of the 0603CG471J500NT capacitor?

The capacitance tolerance is ±5%.

What type of dielectric does the 0603CG471J500NT capacitor use?

It uses a C0G (NP0) dielectric.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 125°C.

What are the dimensions of the 0603CG471J500NT capacitor?

The dimensions are 1.6 x 0.8 x 0.8 mm.

What is the standard package quantity for the 0603CG471J500NT?

The standard package quantity is 4000 units.
