| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,717 pcs
|
1717 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

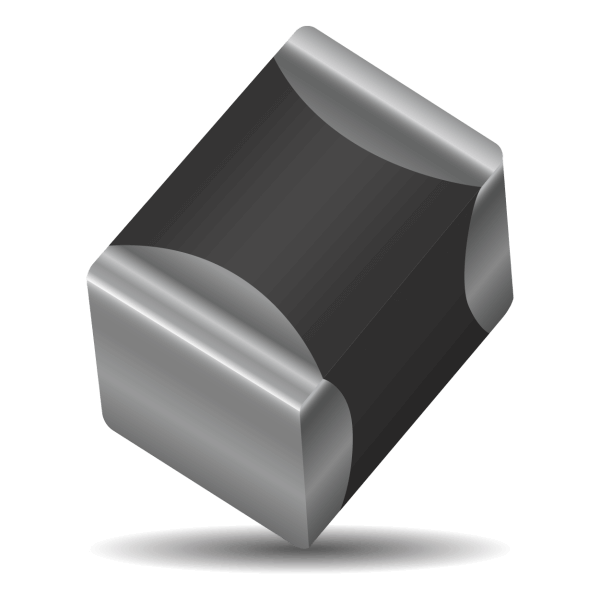

The Kyocera AVX 06035F102K4Z2A is a surface-mount multilayer ceramic capacitor (MLCC) with a nominal capacitance of 1000 pF and a rated voltage of 50V. It features a ±10% tolerance and an X8R temperature coefficient, ensuring stable performance over a wide operating temperature range of -55°C to 150°C. This component is AEC-Q200 qualified, making it suitable for automotive applications. It also incorporates soft termination and high-temperature features, providing boardflex sensitivity and reliability in demanding environments. The capacitor is housed in a standard 0603 (1608 Metric) package with dimensions of 1.60mm length, 0.81mm width, and a maximum thickness of 0.90mm. It is designed for surface mount assembly and is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.07 | $0.07 |
| 100+ | $0.06 | $0.06 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.04 | $0.04 |
| 4,000+ | $0.03 | $0.03 |
| 8,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 1000 pF.
The rated voltage is 50V.
The operating temperature range is -55°C to 150°C.
The tolerance is ±10%.
The package is 0603 (1608 Metric).
Yes, it is rated AEC-Q200.
The temperature coefficient is X8R.
