| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Static Pressure | |
| Termination | |
| Voltage | |
| Width |

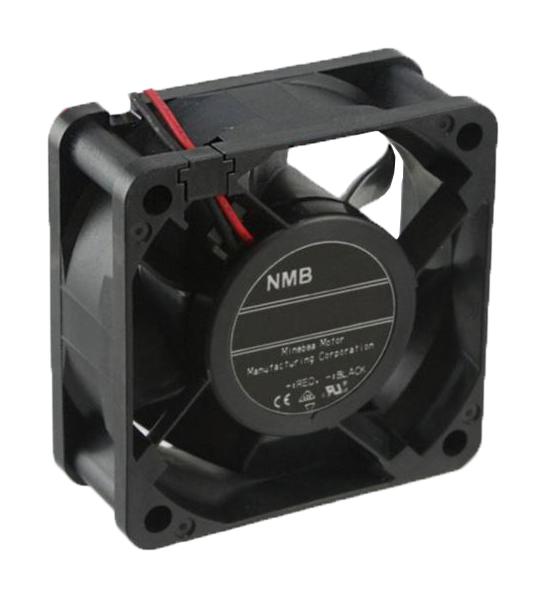

The 06025SA-24M-AA-D0 is a DC axial fan from NMB Technologies, part of the 06025SA series. It features a 60mm square frame with 25mm width, operating at 24 VDC with a power consumption of 1.4 W. The fan delivers an airflow of 19.8 CFM (0.554 m³/min) and a static pressure of 44.8 Pa (0.180 in H2O) at a rated speed of 4000 RPM. Noise level is rated at 27.5 dB. The fan uses a ball bearing system for reliability and is designed for tubeaxial airflow. It includes auto restart protection and polarity protection. The operating temperature range is -10°C to 70°C. Termination is via 2 wire leads (red positive, black negative). Mounting is rib mount. The housing and impeller are made of plastic rated UL94V-0. The fan is listed as RoHS3 compliant, REACH unaffected, and MSL level 1 (unlimited). This fan is suitable for general purpose cooling, industrial equipment, servers, and refrigeration applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.16 | $9.16 |
| 10+ | $7.44 | $7.44 |
| 25+ | $6.79 | $6.79 |
| 50+ | $6.33 | $6.33 |
| 260+ | $6.13 | $6.13 |
| 1,040+ | $5.66 | $5.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 VDC.
Square - 60mm L x 60mm H x 25mm W.
-10°C to 70°C.
Yes, it is listed as RoHS3 compliant (unverified).
19.8 CFM (0.554 m³/min).
27.5 dB.
Ball bearing.
