| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

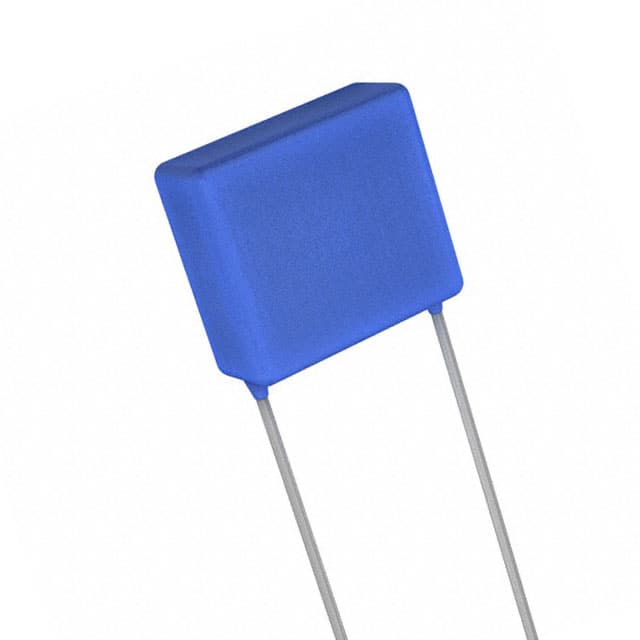

The KEMET 05HV25B224MC is a radial leaded ceramic capacitor with a capacitance of 0.22 µF and a voltage rating of 500V. It uses an X7R dielectric, providing a temperature coefficient that ensures stable capacitance over a wide operating range of -55°C to 200°C. The component is through-hole mounted with straight leads and a lead spacing of 14.60 mm (0.575 inches).
This capacitor is designed for demanding environments, with features specifically suited for downhole applications where high voltage and high temperature tolerance are critical. The radial package measures 17.02 mm in length, 6.89 mm in width, and 15.24 mm in height, making it suitable for compact assemblies.
The ±20% tolerance accommodates variations in manufacturing while maintaining reliable performance in high-stress conditions. The X7R dielectric offers a good balance between capacitance stability and temperature range, making this capacitor a robust choice for industrial and harsh environment electronics.
The capacitance is 0.22 µF.
The voltage rating is 500V.
The temperature coefficient is X7R.
The operating temperature range is -55°C to 200°C.
The tolerance is ±20%.
The package is radial, through-hole mounting with straight leads and 14.60 mm lead spacing.
