| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

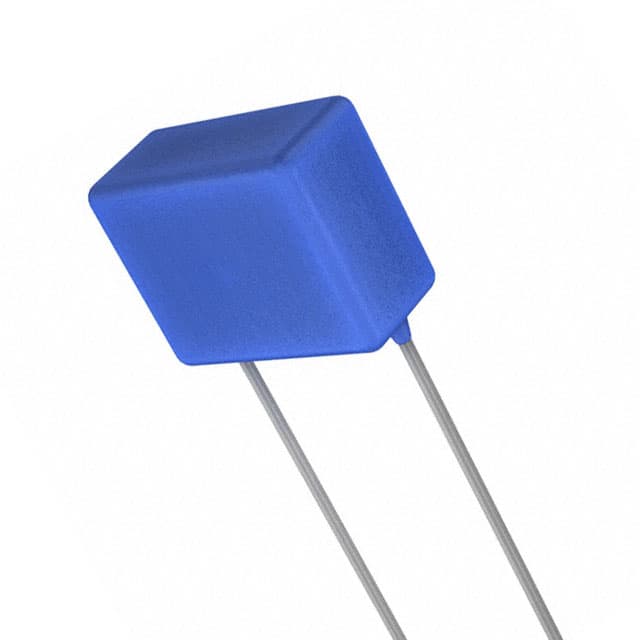

The KEMET 05HV14B104KN is a ceramic capacitor with a capacitance of 0.1 µF and a voltage rating of 500V. It features an X7R temperature coefficient and a tolerance of ±10%. This component is designed for through-hole mounting in a radial package with a lead spacing of 12.70 mm and straight leads.
This capacitor is rated for an operating temperature range of -55°C to 200°C, making it suitable for high-temperature environments. It is specifically designed for downhole applications and is characterized as a high voltage, high temperature component. The X7R dielectric provides stable capacitance over a wide temperature range.
The radial package measures 15.75 mm in length, 7.62 mm in width, and 12.70 mm in height. The lead spacing is 12.70 mm with straight leads, facilitating through-hole mounting on printed circuit boards.
The capacitance is 0.1 µF.
The voltage rating is 500V.
The tolerance is ±10%.
The temperature coefficient is X7R.
The operating temperature range is -55°C to 200°C.
The package is radial through-hole with a lead spacing of 12.70 mm and straight leads.
The dimensions are 15.75 mm length, 7.62 mm width, and 12.70 mm height.
