| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

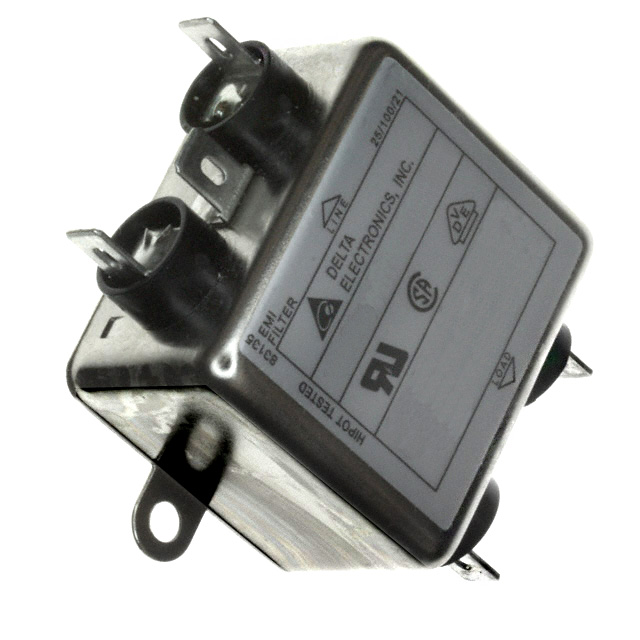

The Delta Electronics 05DKAG5 is a single phase, single stage EMI power line filter designed for general purpose applications. It is rated for operation at 115VAC or 250VAC with a current rating of 5A and a frequency range of 50/60Hz. The filter provides an inductance of 2.7 mH to suppress conducted noise.
This filter is chassis mounted and terminated with quick connect terminals for easy installation. It operates over a wide temperature range of -25°C to 100°C, making it suitable for various environments. The filter is approved by CSA, UR, and VDE, ensuring compliance with international safety standards.
As a general purpose line filter, the 05DKAG5 is used to reduce electromagnetic interference in power supply lines. It is suitable for use in industrial equipment, power supplies, and other electronic systems requiring single phase filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.77 | $14.77 |
| 10+ | $13.19 | $13.19 |
| 25+ | $12.14 | $12.14 |
| 50+ | $11.22 | $11.22 |
| 84+ | $10.71 | $10.71 |
| 252+ | $10.45 | $10.45 |
| 504+ | $9.97 | $9.97 |
| 1,008+ | $9.80 | $9.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The filter is rated for 115VAC and 250VAC.
5A.
2.7 mH.
The filter is chassis mounted with quick connect terminals.
The operating temperature range is -25°C to 100°C.
CSA, UR, and VDE.
The filter is reported as RoHS3 compliant, but this is unverified.
