Mfr Part #:

0559591230

Name: 0559591230
Brand: Molex
SKU: 0559591230

Mfr Name: Molex

Description:

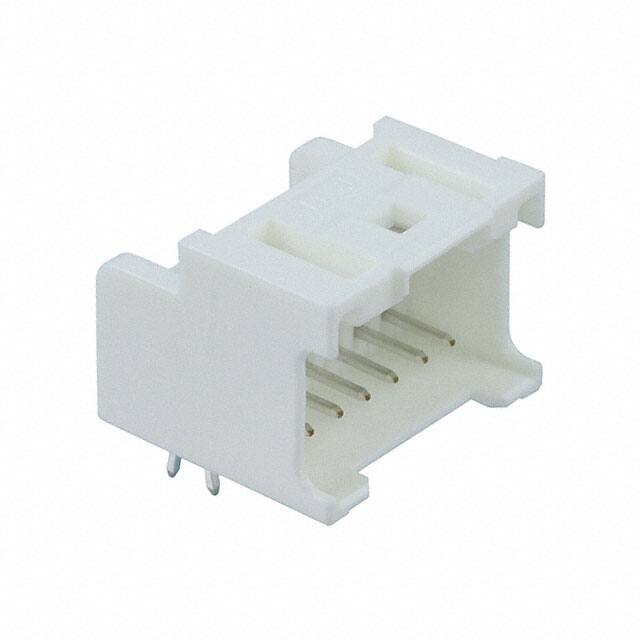

CONN HEADER R/A 12POS 2MM

Stock on Request

0559591230 Description

Short technical summary and product information.

CONN HEADER R/A 12POS 2MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Length	0.126" (3.20mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	0.461" (11.70mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch	0.079" (2.00mm)
Row Spacing	0.197" (5.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
