0559171210 Molex 0559171210 is a 12-position, 2-row, 2.00mm pitch shrouded header with male pins, through hole mounting, and tin-plated brass contacts.
Mfr Part #:

0559171210

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0559171210 is a 12-position, 2-row, 2.00mm pitch shrouded header with male pins, through hole mounting, and tin-plated brass contacts.
✓ Total Stock: 2,100 pcs
$ Price Range: $0.48 - $0.93

0559171210 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,100 pcs
On Request
2100 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0559171210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

0559171210 Description

Short technical summary and product information.

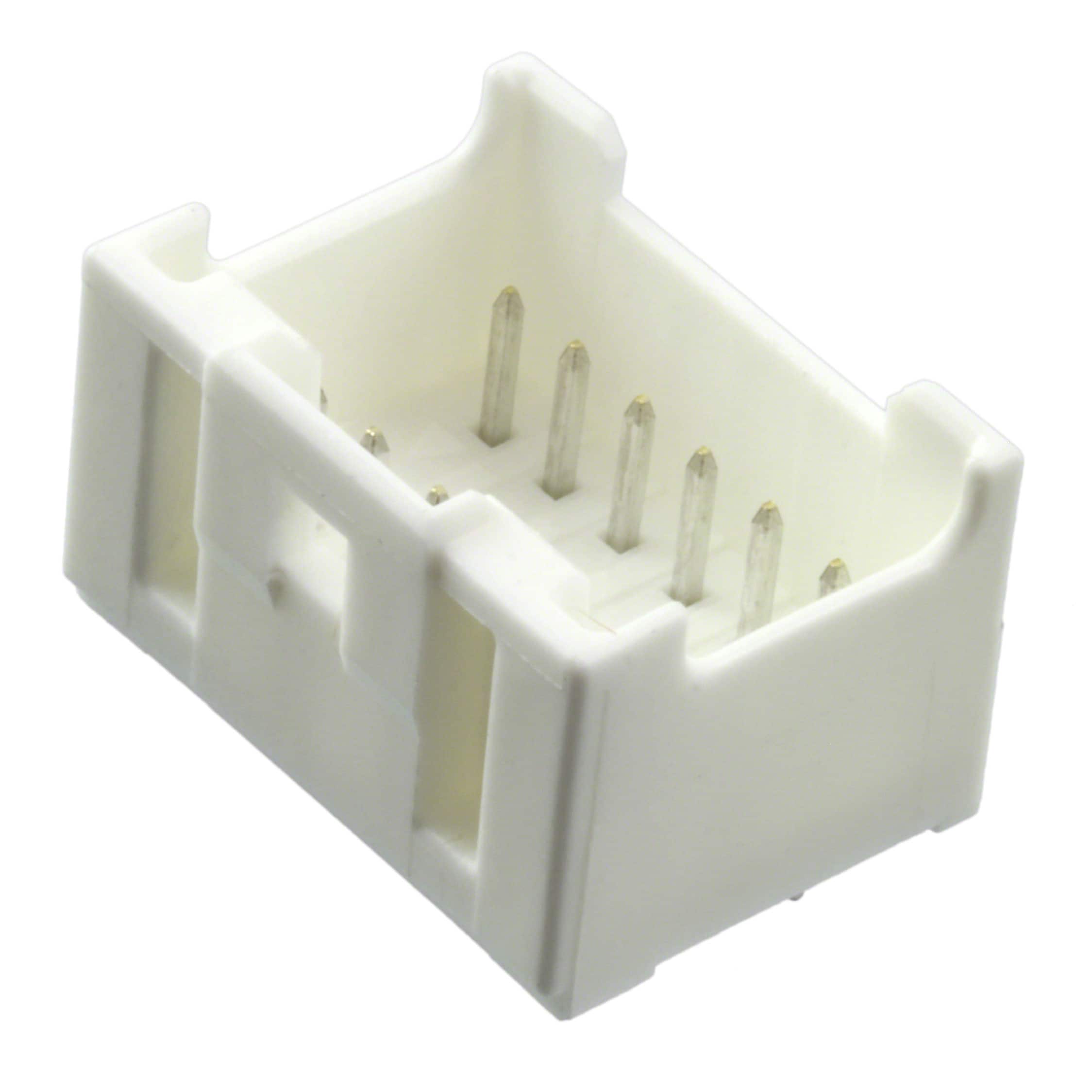

The Molex 0559171210 is a 12-position, 2-row, 2.00mm pitch shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with a latch holder for secure mating. The header uses through hole termination with kinked pins for reliable solder connections.



The insulator is molded from glass-filled PBT with a UL94 V-0 flammability rating and natural color. Contacts are square brass pins with a tin finish. The header includes a board guide feature for alignment during assembly. Overall contact length is 9.30mm with a mating pin length of 3.81mm. Row spacing is 5.00mm.

0559171210 Quick Information

Product Type: Header, Male Pins
Canonical Name: Molex 0559171210 Header, Male Pins, 12 Position, 2.00mm Pitch, Through Hole, Shrouded
Subcategory: Male Pins

0559171210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0559171210 Estimated Pricing

Qty Low High
1+ $0.93 $0.93
10+ $0.79 $0.79
100+ $0.67 $0.67
750+ $0.58 $0.58
1,500+ $0.55 $0.55
5,250+ $0.51 $0.51
10,500+ $0.48 $0.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

0559171210 Features

  • 12 positions in 2 rows at 2.00mm pitch.
  • Shrouded 4-wall housing with latch holder.
  • Through hole mounting with kinked solder pins.
  • Tin-plated square brass contacts.
  • UL94 V-0 rated glass-filled PBT insulator.

0559171210 Applications

  • Board-to-cable/wire connections in industrial equipment.
  • Internal wiring harnesses in consumer electronics.
  • Power and signal distribution in control panels.
  • Data communication interfaces in networking gear.

0559171210 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Molex 0559171210 header?

The pitch is 2.00mm (0.079 inches).

How many positions does the Molex 0559171210 have?

It has 12 positions arranged in 2 rows.

What is the mounting type for this header?

Through hole mounting with kinked pin, solder termination.

What is the contact material and finish?

Contacts are made of brass with a tin finish.

Is the header shrouded?

Yes, it has a shrouded 4-wall design with a latch holder fastening type.

What is the flammability rating of the insulator?

The insulator material is rated UL94 V-0.
