Mfr Part #:

0559090274

Name: 0559090274
Brand: Molex
SKU: 0559090274

Mfr Name: Molex

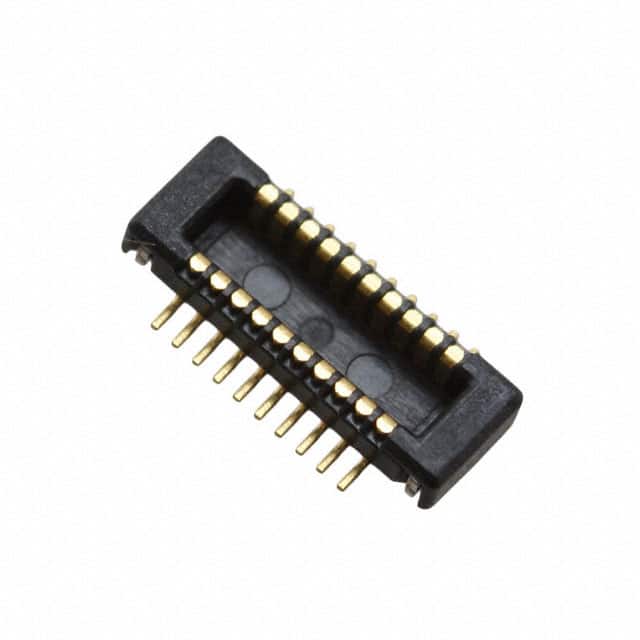

CONN PLUG 20POS SMD GOLD

Stock on Request

0559090274 Description

Short technical summary and product information.

CONN PLUG 20POS SMD GOLD

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Molex

0.4 BTB PLG ASSY J-BENDTL 20CKTE

Molex

0.4 BTB PLG ASSY J-BENDTL 20CKTE

Molex

0.4 BTB PLG ASSY J-BENDTL 20CKTE

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Molex
Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8.00碌in (0.203碌m)
Features	Solder Retention
Height Above Board	0.045" (1.14mm)
Mated Stacking Heights	1.5mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.016" (0.40mm)
