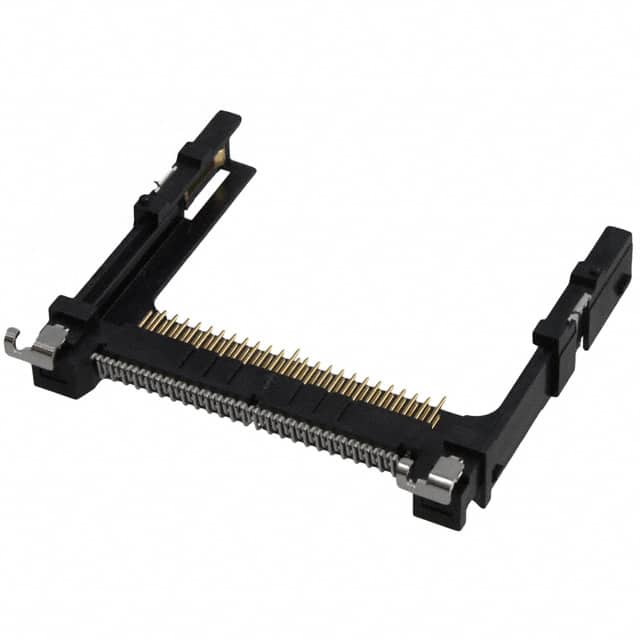

0553585029 Molex 0553585029 is a 50-position CompactFlash card connector with surface mount, right angle mounting and gold contact finish, designed for Type I and II cards.
Mfr Part #:

0553585029

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0553585029 is a 50-position CompactFlash card connector with surface mount, right angle mounting and gold contact finish, designed for Type I and II cards.
✓ Total Stock: 25 pcs

0553585029 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0553585029 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Insertion, Removal Method
Lead Style
Mounting Feature
Mounting Type
Number of Positions
View Similar Products (0)

0553585029 Description

Short technical summary and product information.

The Molex 0553585029 is a 50-position CompactFlash card connector supporting both Type I and Type II cards. It features a surface mount, right angle mounting orientation with a top-mounted standard design. The connector uses a push-in, pull-out insertion and removal method and includes board and card guides for reliable mating. The height above board is 7.60 mm. Contacts are finished with gold (8.00 µin / 0.203 µm) for reliable electrical performance.

0553585029 Quick Information

Product Type: Memory Card Connector
Canonical Name: CompactFlash Card Connector, Type I/II, 50 Position, Right Angle, Surface Mount
Subcategory: Memory Connectors

0553585029 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0553585029 Features

  • 50-position CompactFlash card connector.
  • Supports Type I and Type II cards.
  • Right angle surface mount design.
  • Gold plated contacts for reliability.
  • Includes board guide and card guide.

0553585029 Applications

  • Used in embedded computing applications.
  • Suitable for industrial data storage devices.
  • Widely used in portable medical equipment.
  • Ideal for ruggedized mobile systems.

0553585029 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

50 positions.

What card types are supported?

CompactFlash Type I and Type II.

What is the mounting type?

Surface mount, right angle.

What is the contact finish?

Gold, with 0.203 µm thickness.

What is the height above board?

7.60 mm.
