| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,593 pcs
|
9593 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Orientation | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| USB Standard | |
| Voltage |

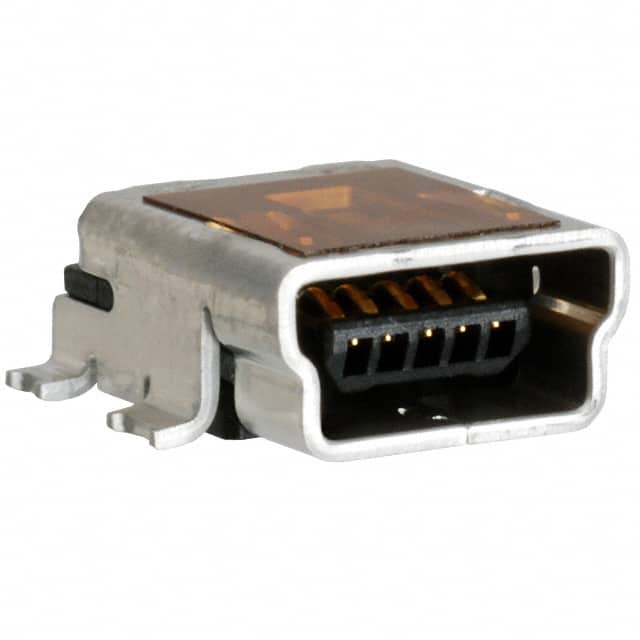

The Molex 0548190572 is a USB 2.0 Mini B receptacle connector designed for OTG applications. It features 5 contacts in a single port, with a horizontal mounting orientation. The connector is shielded for EMI protection and supports solder retention for reliable mechanical attachment.
Rated at 1A and 30V, this connector operates over a temperature range of -20°C to 85°C and is rated for 5000 mating cycles. It offers both surface mount and through-hole mounting options with a right-angle orientation, making it suitable for compact PCB designs.
This connector is ideal for portable electronics and data transfer applications requiring a robust USB 2.0 Mini B interface.
USB - mini B receptacle.
5 contacts.
1 A.
30 V.
Surface mount, right angle; through hole.
Yes, it is shielded.
-20°C to 85°C.
