| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

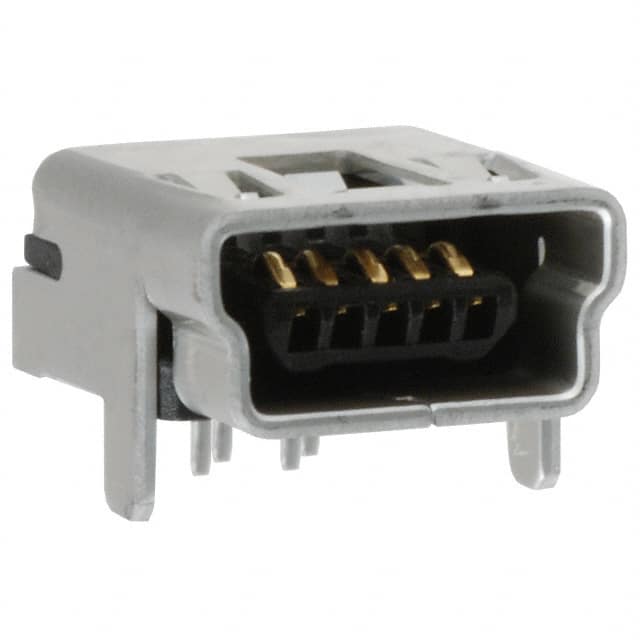

The Molex 0548190519 is a USB 2.0 Mini B receptacle connector designed for OTG (On-The-Go) applications. It features 5 contacts in a single port, with a right-angle through-hole mounting orientation for horizontal board placement. The connector is fully shielded to reduce electromagnetic interference.
Electrical ratings include a current rating of 1A and a voltage rating of 30V. The operating temperature range spans -20°C to 85°C, suitable for a variety of environments. The connector is rated for 5000 mating cycles, indicating robust durability for repeated use.
Termination is via solder, making it compatible with standard through-hole soldering processes. The compact Mini B form factor is widely used in portable devices and data transfer applications.
USB - mini B receptacle.
5 contacts.
1 A.
30 V.
Through hole, right angle.
-20°C to 85°C.
5000 cycles.
