| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,805 pcs
|
2805 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

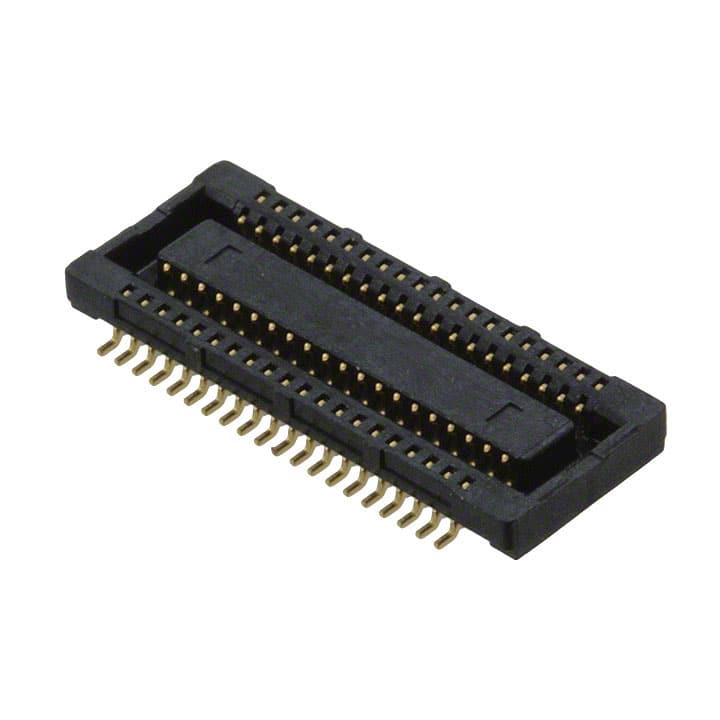

The Molex 0547220404 is a 40-position receptacle connector designed for board-to-board mezzanine applications. It features a 0.5mm pitch with two rows of contacts, surface mount termination, and gold plating on contacts. The connector has a height of 1.14mm above the board and supports a mated stacking height of 1.5mm. This compact connector is suitable for applications requiring high-density interconnections in space-constrained designs. Compliance data indicates RoHS3 and REACH unaffected, though unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.70 | $2.70 |
| 10+ | $2.30 | $2.30 |
| 25+ | $2.15 | $2.15 |
| 50+ | $2.05 | $2.05 |
| 100+ | $1.95 | $1.95 |
| 250+ | $1.83 | $1.83 |
| 500+ | $1.74 | $1.74 |
| 1,000+ | $1.72 | $1.72 |
| 3,000+ | $1.76 | $1.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
0.5mm (0.020").
Surface mount.
Gold with 10.0µin (0.25µm) thickness.
2 rows.
1.14mm (0.045").
1.5mm.
