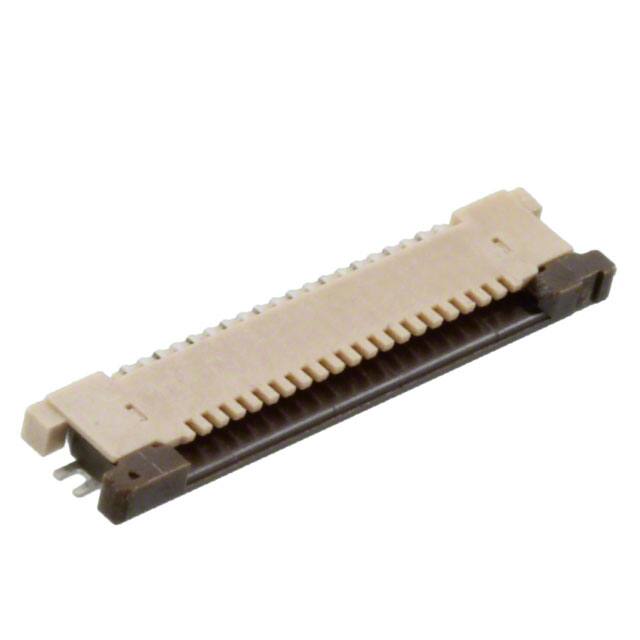

0545502071 Molex 0545502071 is a 20-position, 0.5mm pitch, surface mount right-angle FFC/FPC connector with top contacts, slide lock, and zero insertion force (ZIF).
Mfr Part #:

0545502071

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0545502071 is a 20-position, 0.5mm pitch, surface mount right-angle FFC/FPC connector with top contacts, slide lock, and zero insertion force (ZIF).
✓ Total Stock: 31 pcs

0545502071 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0545502071 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Cable End Type
Connector
Contact Finish
Contact Material
FFC, FCB Thickness
Features
Flat Flex Type
Height Above Board
Housing Material
Lead Spacing
Locking Feature
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination
Termination Style
Voltage Rating
View Similar Products (0)

0545502071 Description

Short technical summary and product information.

The Molex 0545502071 is a 20-position FFC/FPC connector designed for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. It features a 0.50mm pitch and a surface mount right-angle mounting style, ideal for compact, low-profile interconnections.



The connector employs top contacts with a gold finish for reliable electrical performance. The housing is made from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is polyphenylene sulfide (PPS). It includes a slide lock for secure cable retention and solder retention for robust board mounting.



Key specifications include a 50V voltage rating, an operating temperature range of -20°C to 85°C, supports FFC/FPC cable thickness of 0.30mm, and accepts straight or tapered cable end types. This connector is RoHS3 and REACH compliant (unverified).

0545502071 Quick Information

Product Type: FFC, FPC (Flat Flexible) Connector Assembly
Series: Easy-On
Canonical Name: Molex 0545502071 FFC/FPC Connector, 20 Positions, 0.5mm Pitch, Right Angle, Surface Mount, Top Contact
Subcategory: Surface Mount, Right Angle

0545502071 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0545502071 Features

  • 20 positions, 0.5mm pitch FFC/FPC connector.
  • Surface mount right-angle mounting style.
  • Gold-plated top contacts for reliable connection.
  • Slide lock and zero insertion force (ZIF) feature.
  • Operating temperature -20°C to 85°C.

0545502071 Applications

  • Suitable for flexible flat cable (FFC) connections.
  • Used for flexible printed circuit (FPC) interconnects.
  • Ideal for compact, low-profile electronic assemblies.

0545502071 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0545502071 connector have?

The connector has 20 positions.

What is the pitch of this connector?

The pitch is 0.50mm.

What is the mounting style?

Surface mount, right angle.

What is the voltage rating?

50V.

Does this connector have a locking feature?

Yes, it features a slide lock.
