Mfr Part #:

0545501971

Name: 0545501971
Brand: Molex
SKU: 0545501971

Mfr Name: Molex

Description:

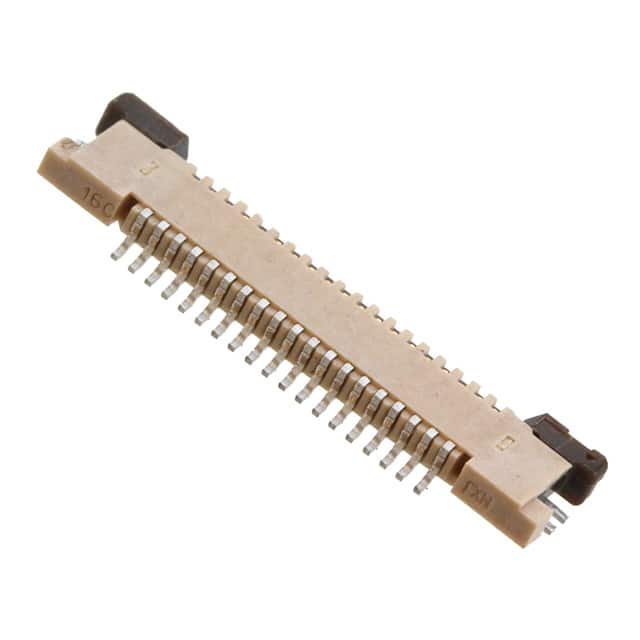

CONN FFC FPC TOP 19POS 0.5MM R/A

Stock on Request

0545501971 Description

Short technical summary and product information.

CONN FFC FPC TOP 19POS 0.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Molex

CONN FFC FPC TOP 19POS 0.5MM R/A

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Molex
Actuator Material	Polyphenylene Sulfide (PPS)
Cable End Type	Straight, Tapered
Connector	Contacts, Top
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Solder Retention, Zero Insertion Force (ZIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.047" (1.20mm)
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	19
Operating Temperature	-20°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
