| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
956 pcs
|
956 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

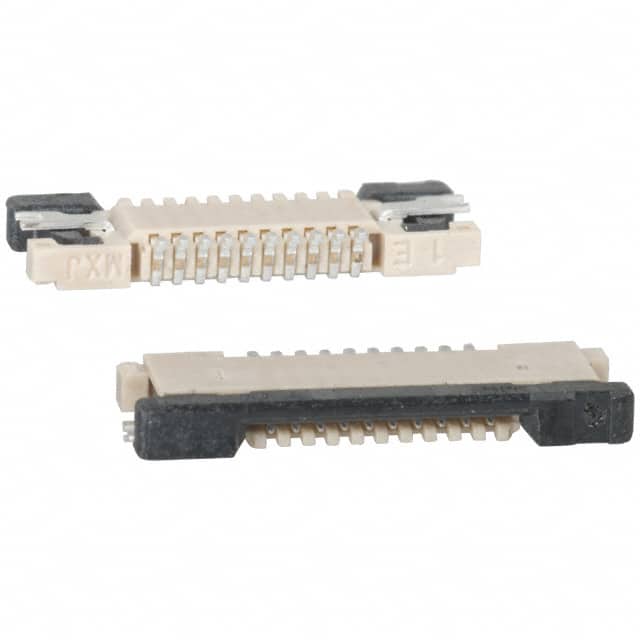

The Molex 0545481070 is a 10-position FFC/FPC connector featuring a 0.50mm pitch and a surface mount, right angle mounting style. It is designed for use with FFC and FPC cables that have a thickness of 0.30mm and supports both straight and tapered cable end types.
The connector utilizes a flip lock locking mechanism for secure cable retention and features a Zero Insertion Force (ZIF) design. The contacts are made of phosphor bronze with a tin bismuth finish, and the housing is constructed from Liquid Crystal Polymer (LCP) with a Polyphenylene Sulfide (PPS) actuator. It includes solder retention features for reliable board attachment.
This connector is rated for 50V and has an operating temperature range of -20°C to 85°C. The housing material has a UL94 V-0 flammability rating. The height above the board is 1.20mm.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 10 positions.
The pitch is 0.50mm.
The voltage rating is 50V.
The mounting type is surface mount, right angle.
It uses a flip lock locking feature.
The operating temperature range is -20°C to 85°C.
The height above board is 1.20mm.
