| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,335 pcs
|
1335 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contact Type | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

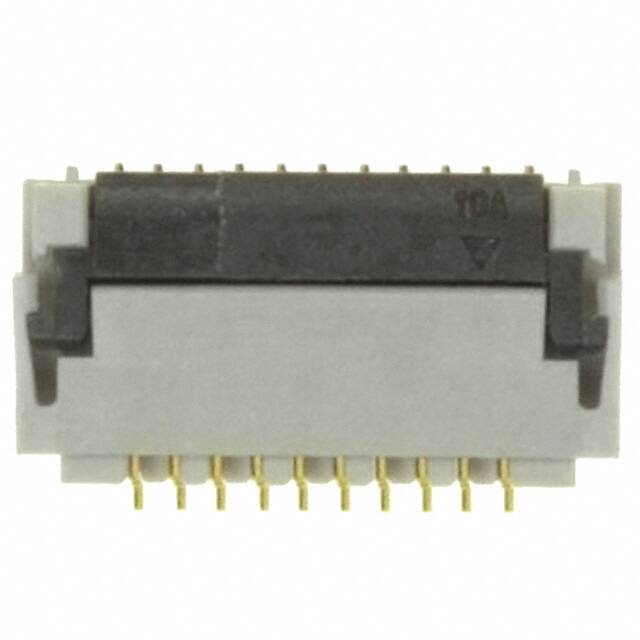

The Molex 0543932181 is a 21 position FPC (Flexible Printed Circuit) connector with a 0.30mm pitch, designed for surface mount, right angle mounting. It features a bottom contact configuration with gold-plated phosphor bronze contacts for reliable electrical performance. The housing is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is made of polyphenylene sulfide (PPS). This connector incorporates a flip lock locking mechanism for secure cable retention and a zero insertion force (ZIF) design to simplify cable insertion. It is rated for 50V DC operation and has an operating temperature range of -20°C to 85°C. The connector also includes solder retention features for enhanced mechanical stability during assembly. This component is suitable for high-density interconnect applications in compact electronic devices where space is constrained.
It has 21 positions.
The pitch is 0.30mm (0.012 inches).
It is rated for 50V DC.
It is surface mount, right angle.
-20°C to 85°C.
It has a flip lock actuator.
Gold.
