Mfr Part #:

0541323033

Name: 0541323033
Brand: Molex
SKU: 0541323033

Mfr Name: Molex

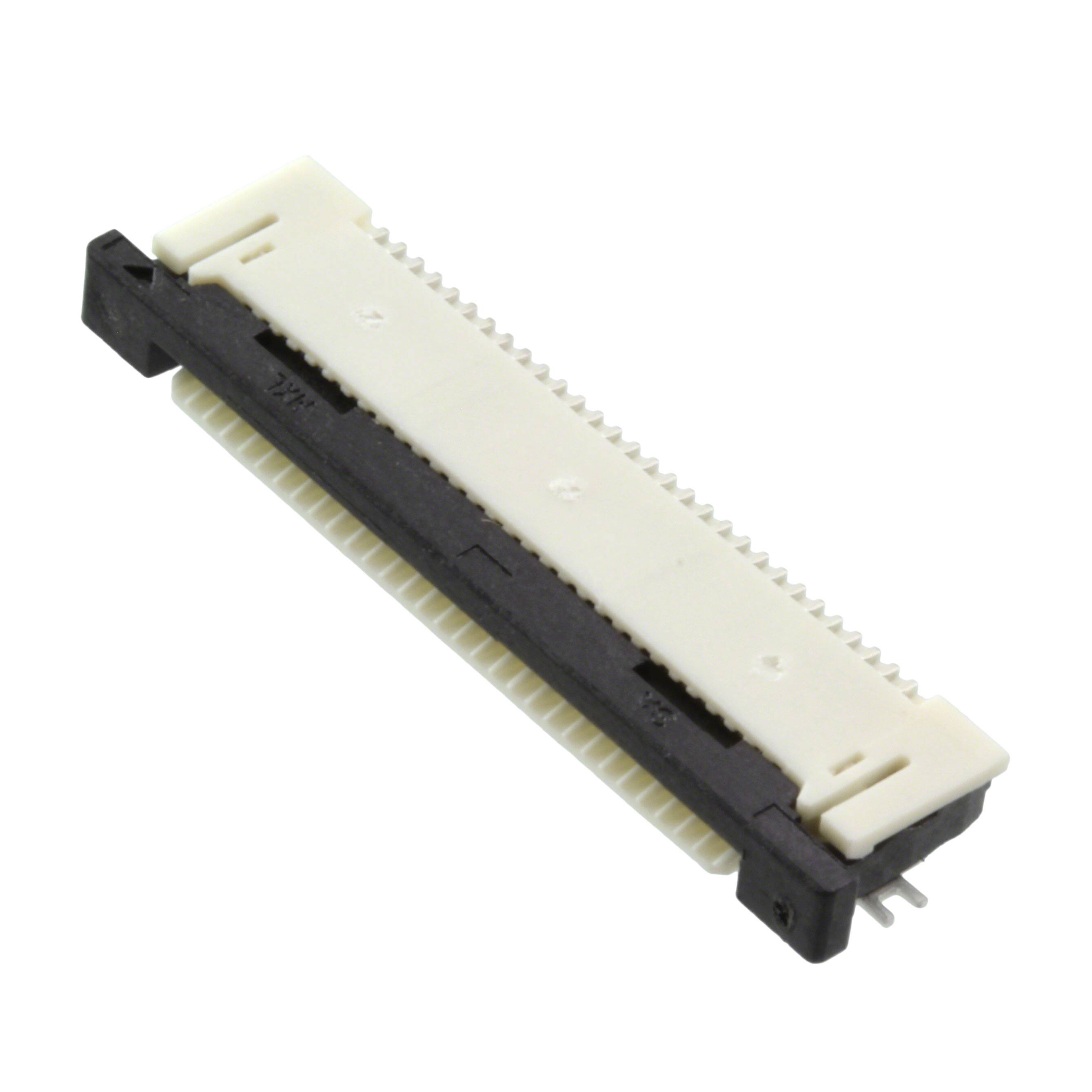

CONN FFC BOTTOM 30POS 0.5MM R/A

Stock on Request

0541323033 Description

Short technical summary and product information.

CONN FFC BOTTOM 30POS 0.5MM R/A

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0524373033

Molex

CONN FFC BOTTOM 30POS 0.5MM R/A

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Molex
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Straight, Tapered
Connector	Contacts, Bottom
Contact Finish	Tin Bismuth
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Solder Retention, Zero Insertion Force (ZIF)
Flat Flex Type	FFC, FPC
Height Above Board	0.079" (2.00mm)
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Operating Temperature	-40°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
