| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
303 pcs
|
303 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

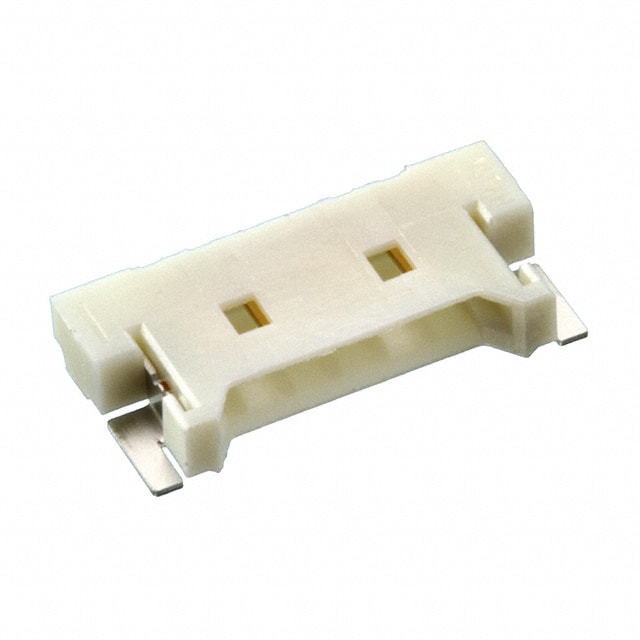

The Molex 0537800570 is a surface mount, right angle shrouded header designed for board-to-cable/wire connections. This connector features 5 positions in a single row with a 1.25mm pitch, making it suitable for compact electronic assemblies. The shroud is a 4-wall design with a detent lock fastening type for secure mating. The housing is made of Polyphenylene Sulfide (PPS) insulation material with a natural color and a UL94 V-0 flammability rating, ensuring robust performance in demanding environments. The contacts are made of phosphor bronze with a tin finish, and the contact finish thickness is 8.00µin (0.203µm). The product includes a solder retention feature to aid in manufacturing. It is rated for 125V and has an operating temperature range of -40°C to 85°C. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (Unlimited).
This header has 5 positions.
The pitch is 1.25mm (0.049 inches).
The voltage rating is 125V.
Surface Mount, Right Angle.
-40°C to 85°C.
Phosphor bronze contact material with a tin finish.
UL94 V-0.
