| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
944 pcs
|
944 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

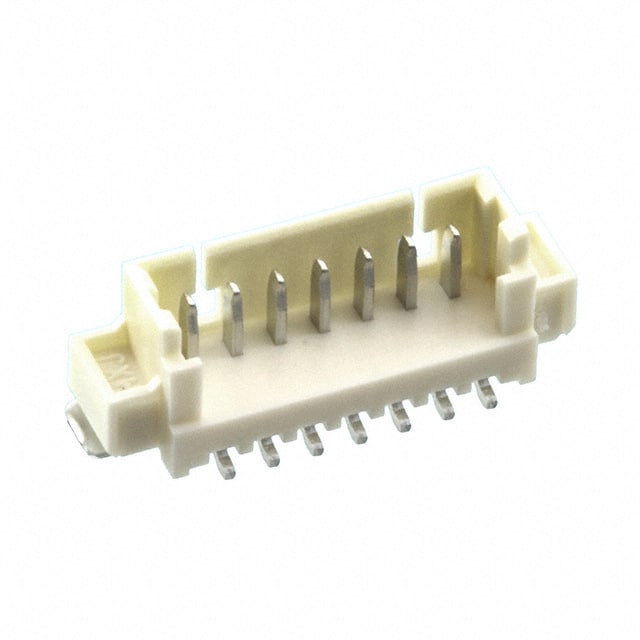

The Molex 0533980771 is a 7-position, single-row, 1.25mm pitch header connector designed for board-to-cable/wire applications. It features male blade contacts with tin plating (39.4µin) on phosphor bronze contact material.
This surface mount connector has a shrouded - 3 wall design with detent lock fastening for secure mating. The insulation is made of polyamide (PA) nylon in natural color, with an insulation height of 4.70mm. It includes solder retention features for reliable soldering.
The connector is rated UL94 V-0 for flammability. Environmental compliance data indicates RoHS3 compliance and REACH unaffected, with MSL 1 (unlimited). The termination style is solder, and it is packaged for surface mount assembly.
7 positions.
1.25mm.
Surface Mount.
Male Blade.
Shrouded - 3 Wall.
Detent Lock.
RoHS3 Compliant.
