| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,468 pcs
|
2468 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

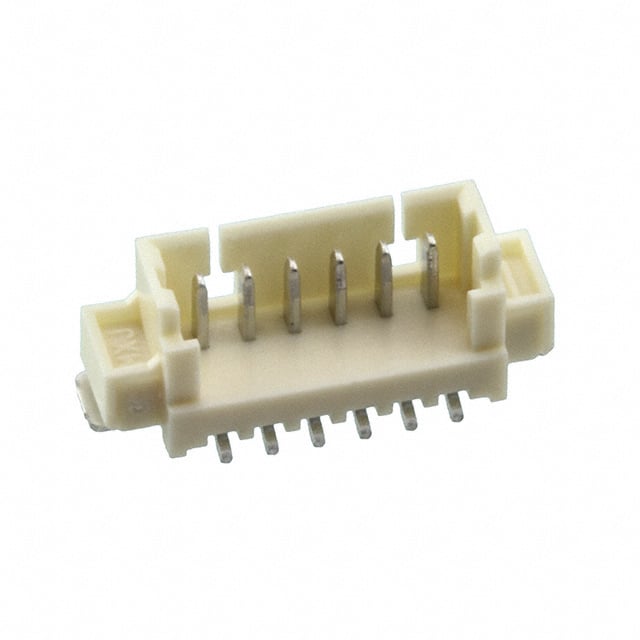

The Molex 0533980671 is a 6-position, single-row, surface mount header designed for board-to-cable/wire applications. It features male blade contacts with a tin finish over a phosphor bronze base, ensuring reliable conductivity and corrosion resistance. The connector is shrouded with a 3-wall design, providing protection and alignment during mating.
The header operates with a 1.25mm pitch and is surface mounted via solder termination. It includes a solder retention feature that helps hold the component in place during the reflow process. The insulation is made from natural polyamide (PA) nylon, rated UL94 V-0 for flammability.
The fastening type is a detent lock, which provides a secure mechanical connection to the mating cable assembly. The contact finish thickness is 1.00µm of tin. The header has an insulation height of 4.70mm.
The pitch is 1.25mm.
It has 6 positions in a single row.
The mounting type is surface mount with solder termination.
The contact finish is tin with a thickness of 1.00µm.
The insulation material is polyamide (PA) nylon with a UL94 V-0 flammability rating.
Yes, it is a shrouded 3-wall design for protection and alignment.
