Mfr Part #:

0533072071

Name: 0533072071
Brand: Molex
SKU: 0533072071

Mfr Name: Molex

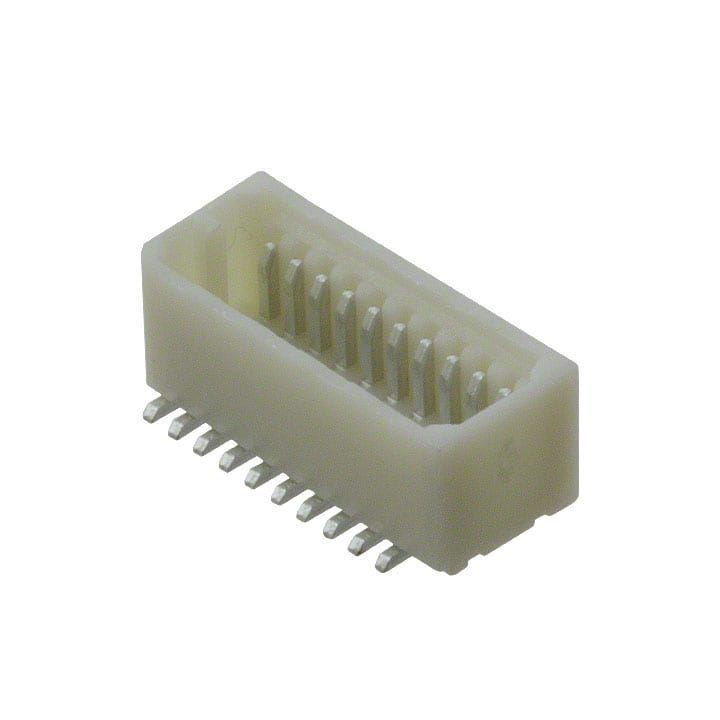

CONN HDR 20POS SMD TIN

Stock on Request

0533072071 Description

Short technical summary and product information.

CONN HDR 20POS SMD TIN

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0533072091

Molex

CONN HDR 20POS SMD TIN

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Molex
Connector Type	Header, Outer Shroud Contacts
Contact Finish	Tin
Contact Finish Thickness	120.0碌in (3.05碌m)
Height Above Board	0.144" (3.66mm)
Mated Stacking Heights	4.5mm, 5.5mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.031" (0.80mm)
