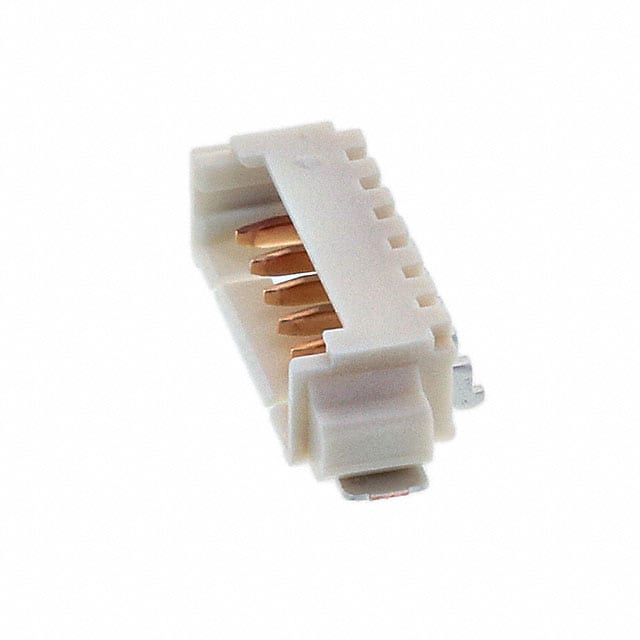

0532617006 Molex 0532617006 is a 6-position, 1.25mm pitch, surface mount right angle header with shrouded 4-wall design and detent lock. It features tin-plated phosphor bronze contacts and solder retention.
Mfr Part #:

0532617006

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0532617006 is a 6-position, 1.25mm pitch, surface mount right angle header with shrouded 4-wall design and detent lock. It features tin-plated phosphor bronze contacts and solder retention.
✓ Total Stock: 280 pcs
$ Price Range: $1.49

0532617006 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
280 pcs
On Request
280 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0532617006 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

0532617006 Description

Short technical summary and product information.

The Molex 0532617006 is a 6-position, single-row header designed for board-to-cable/wire connections. It features a 1.25mm pitch and a right-angle surface mount termination, making it suitable for compact PCB layouts.



The connector is fully shrouded with a 4-wall design and includes a detent lock for secure mating. Contacts are made of phosphor bronze with a tin finish (15.0µin thickness). The insulation is natural polyamide (nylon) with a UL94 V-0 flammability rating.



Electrical ratings are 1A per contact and 125VAC/DC. Operating temperature range is -40°C to 85°C. The header includes solder retention features for reliable SMD assembly.

0532617006 Quick Information

Product Type: Header, Male Pins
Series: PicoBlade
Canonical Name: Molex 0532617006 6 Position 1.25mm Pitch SMD Right Angle Header, Shrouded, Detent Lock
Subcategory: Shrouded Header

0532617006 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0532617006 Estimated Pricing

Qty Low High
1+ $1.49 $1.49

Estimated market price range - modelled values for guidance only, not live distributor offers.

0532617006 Features

  • 6-position single-row 1.25mm pitch header.
  • Surface mount right angle termination.
  • Shrouded 4-wall design with detent lock.
  • Rated 1A per contact at 125VAC/DC.
  • Tin-plated phosphor bronze contacts.

0532617006 Applications

  • Ideal for compact board-to-cable connections.
  • Used in consumer electronics and appliances.
  • Suitable for automotive interior applications.
  • Works in industrial control modules.

0532617006 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

6 positions.

What is the pitch?

1.25mm (0.049").

What is the current rating?

1A per contact.

What is the voltage rating?

125VAC/DC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-40°C to 85°C.

What is the contact finish?

Tin, 15.0µin (0.38µm).
