| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

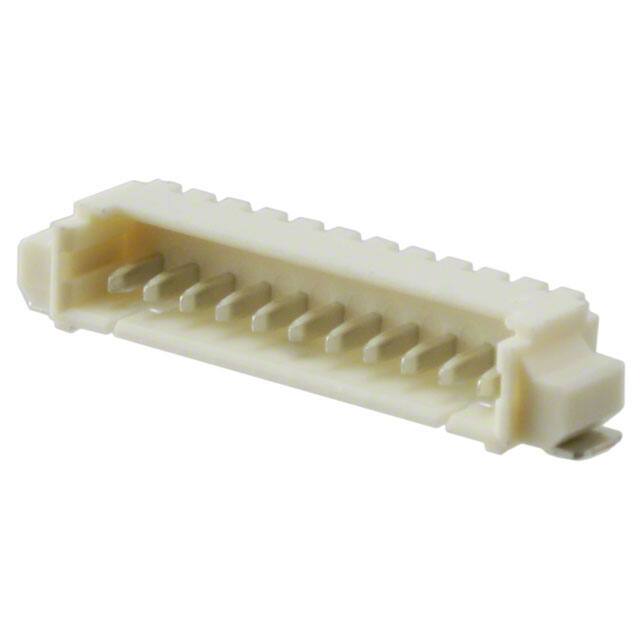

The Molex 0532611171 is a 1.25mm pitch, 11-position, single row, shrouded header designed for board-to-cable/wire applications. The connector features male blade contacts made of phosphor bronze with a tin finish, providing reliable electrical connections.
The header is surface mounted with a right angle orientation, making it suitable for space-constrained PCB designs. It is fully shrouded with a 4-wall design and includes a detent lock fastening system for secure mating. The insulation is molded from polyamide (PA46), Nylon 4/6 in natural color and has a flammability rating of UL94 V-0.
With an insulation height of 3.40mm and a contact finish thickness of 1.00µm (39.4µin), this connector is designed for demanding environments. Additional features include solder retention for improved reliability during the soldering process.
The pitch is 1.25 mm (0.049 inches).
It has 11 positions, all loaded, in a single row.
It is a surface mount, right angle header with solder termination.
Yes, it features a full 4-wall shrouding with a detent lock fastening type.
The contacts are phosphor bronze with a tin finish (1.00 µm / 39.4 µin thick).
The insulation is polyamide (PA46), Nylon 4/6, natural color, with a UL94 V-0 flammability rating.
