| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,188 pcs
|
1188 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Voltage Rating |

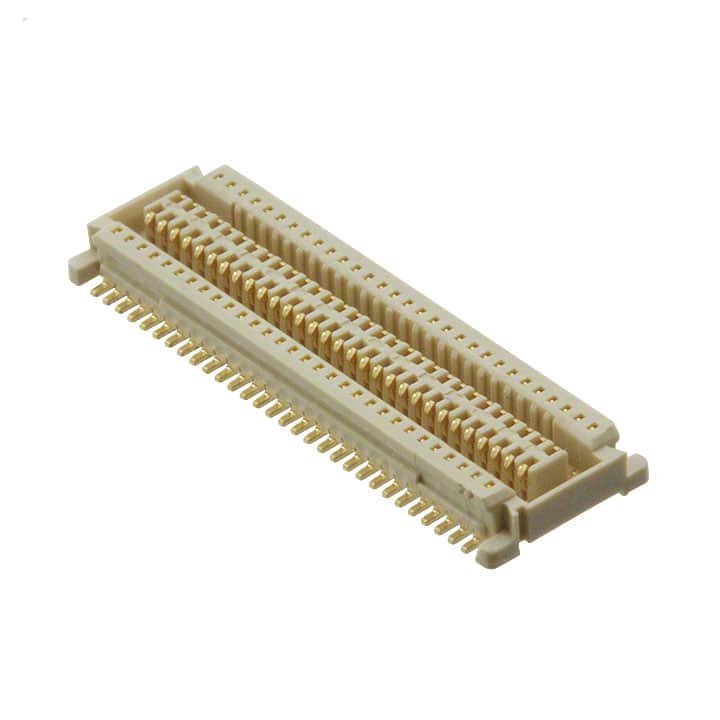

The Molex 0529740604 is a 60-position receptacle connector from the 52974 series, designed for board-to-board stacking applications. It features a center strip contact arrangement with a 0.50mm pitch and a dual row configuration. This surface mount connector offers a mated stacking height of 2mm, suitable for compact electronic assemblies.
Electrical specifications include a voltage rating of 50V, current rating of 0.5A, and contact resistance of 30mΩ maximum. The insulation resistance is 500 MΩ minimum, and the dielectric withstanding voltage is 500V AC. The operating temperature range is -40 to +105°C.
The housing is made of white glass-filled LCP with UL 94V-0 flammability rating, and contacts are phosphor bronze with gold plating (10.0µin). The connector is packaged in embossed tape on a 24mm carrier tape for automated assembly. It is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 20+ | $4.04 | $4.04 |
| 100+ | $3.97 | $3.97 |
| 200+ | $3.90 | $3.90 |
| 360+ | $3.82 | $3.82 |
| 1,500+ | $3.74 | $3.74 |
| 3,000+ | $3.32 | $3.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm.
0.5A.
50V.
Surface mount.
-40 to +105°C.
Gold, 10.0µin (0.25µm) thickness.
