| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
903 pcs
|
903 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

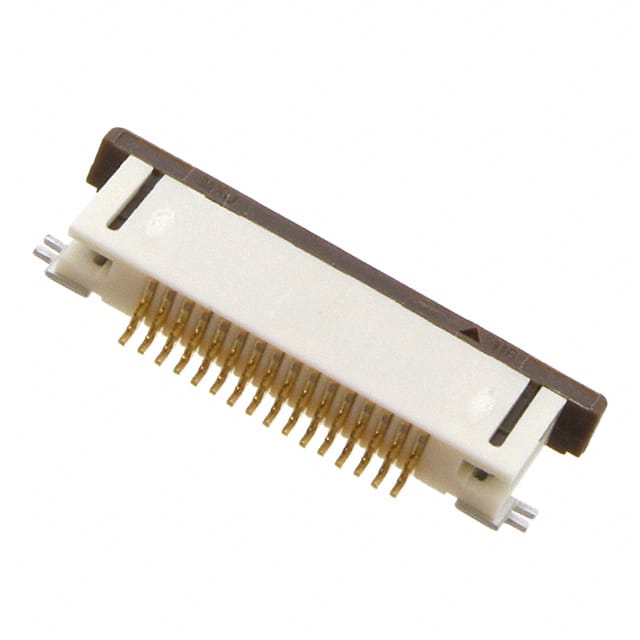

The Molex 0527461671 is a 16-position, 0.5mm pitch FFC/FPC connector designed for right angle surface mount applications. It features a Zero Insertion Force (ZIF) slide lock mechanism for secure cable retention and easy insertion. The connector accommodates FFC/FPC cables with a thickness of 0.3mm and supports both straight and tapered cable end types.
Electrical rating is 50V, with gold-plated phosphor bronze contacts ensuring reliable signal integrity. The housing is made of glass-filled polyamide (PA46) with a UL94 V-0 flammability rating, and the actuator is glass-filled polyphenylene sulfide (PPS). Operating temperature range is -20°C to 85°C.
This connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life). It is suitable for high-density board designs where space is constrained, offering a height above board of 2.00mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
| 10+ | $1.50 | $1.50 |
| 25+ | $1.40 | $1.40 |
| 50+ | $1.34 | $1.34 |
| 100+ | $1.27 | $1.27 |
| 250+ | $1.19 | $1.19 |
| 500+ | $1.14 | $1.14 |
| 1,000+ | $1.24 | $1.24 |
| 2,000+ | $1.18 | $1.18 |
| 3,000+ | $1.15 | $1.15 |
| 5,000+ | $1.11 | $1.11 |
| 7,000+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
0.5mm.
50V.
Surface mount, right angle.
-20°C to 85°C.
Yes, slide lock.
Gold.
