| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

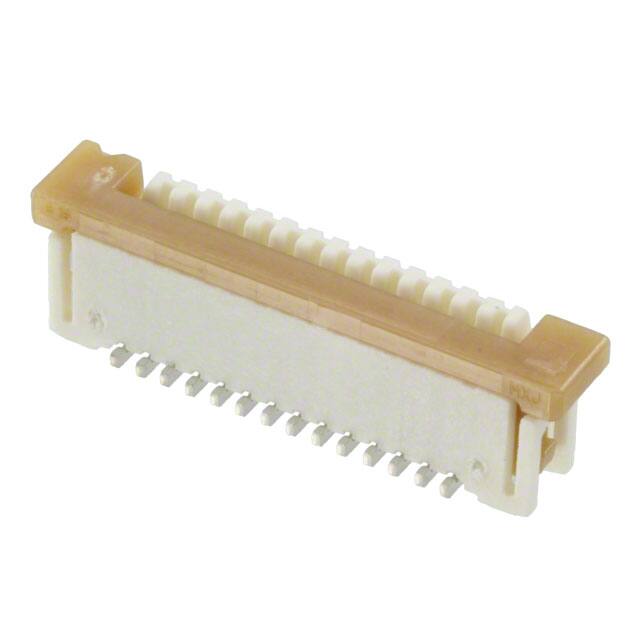

The Molex 0526101471 is a 14-position FFC/FPC connector with a 1.00mm pitch, designed for surface mount soldering. It features a zero insertion force (ZIF) mechanism with a slide lock for secure cable retention. The connector uses a polyamide (PA46) housing and a polyphenylene sulfide (PPS) actuator. Contacts are made of phosphor bronze with a tin bismuth finish. It is rated for 125V and operates over a temperature range of -40°C to 85°C. The housing material has a UL94 V-0 flammability rating. This connector is suitable for high-density interconnects requiring reliable locking and space-saving design.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.07 | $1.07 |
| 25+ | $1.00 | $1.00 |
| 50+ | $0.95 | $0.95 |
| 100+ | $0.91 | $0.91 |
| 250+ | $0.85 | $0.85 |
| 500+ | $0.81 | $0.81 |
| 1,000+ | $0.84 | $0.84 |
| 2,000+ | $0.80 | $0.80 |
| 3,000+ | $0.77 | $0.77 |
| 5,000+ | $0.75 | $0.75 |
| 7,000+ | $0.73 | $0.73 |
| 10,000+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
1.00mm (0.039").
125V.
Surface mount.
-40°C to 85°C.
Slide lock.
RoHS3 compliant (unverified).
