| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
722 pcs
|
722 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

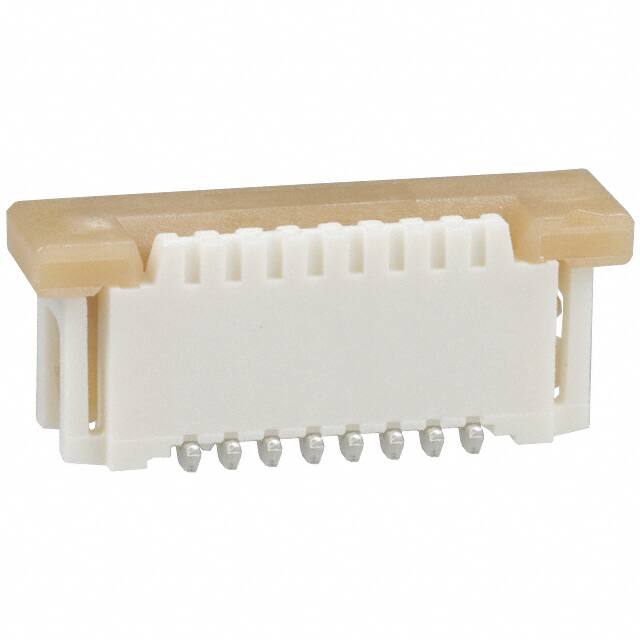

The Molex 0526100871 is an 8-position FFC/FPC connector with a 1.00mm pitch, designed for surface mount applications. It features a vertical orientation with contacts on one side, suitable for tapered cable ends. The connector includes a slide lock mechanism and Zero Insertion Force (ZIF) feature for easy cable insertion and secure retention. The housing is made of Polyamide (PA46) Nylon 4/6 with a UL94 V-0 flammability rating, and the actuator is Polyphenylene Sulfide (PPS). Contacts are phosphor bronze with tin bismuth finish. The operating temperature range is -40°C to 85°C, and the voltage rating is 125V. The height above board is 5.74mm. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for applications requiring reliable flat flexible cable connections in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.72 | $0.72 |
| 25+ | $0.68 | $0.68 |
| 50+ | $0.64 | $0.64 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.57 | $0.57 |
| 500+ | $0.55 | $0.55 |
| 1,000+ | $0.56 | $0.56 |
| 2,000+ | $0.54 | $0.54 |
| 3,000+ | $0.52 | $0.52 |
| 5,000+ | $0.50 | $0.50 |
| 7,000+ | $0.49 | $0.49 |
| 10,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
1.00mm (0.039 inches).
125V.
Surface mount.
-40°C to 85°C.
Yes, it features a slide lock.
Tin bismuth.
