| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
808 pcs
|
808 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

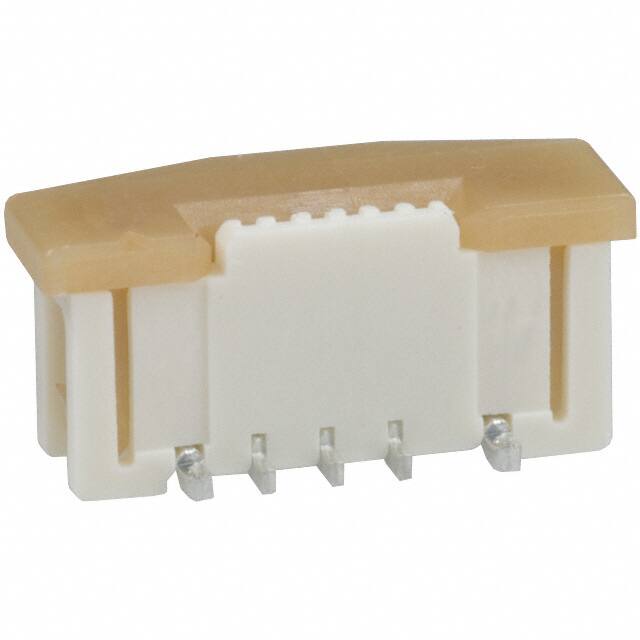

The Molex 0525590672 is a 6-position FFC/FPC connector with a 0.5mm pitch, designed for vertical surface mount applications. It features a Zero Insertion Force (ZIF) slide lock mechanism, ensuring secure cable retention. The connector is rated for 50V and operates from -40°C to 85°C. Housing is made of Polyamide (PA46) with a Polyphenylene Sulfide (PPS) actuator, and contacts are Phosphor Bronze with Tin Bismuth finish. It is RoHS3 compliant and has a UL94 V-0 flammability rating. The connector supports straight and tapered cable ends, and accepts 0.30mm thick FFC/FPC cables. Height above board is 3.90mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.73 | $0.73 |
| 50+ | $0.70 | $0.70 |
| 100+ | $0.66 | $0.66 |
| 250+ | $0.62 | $0.62 |
| 500+ | $0.59 | $0.59 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.58 | $0.58 |
| 3,000+ | $0.57 | $0.57 |
| 5,000+ | $0.55 | $0.55 |
| 7,000+ | $0.53 | $0.53 |
| 10,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
0.50mm (0.020").
50V.
Surface mount.
-40°C to 85°C.
Slide lock.
Tin Bismuth.
