0522711890 Description

Short technical summary and product information.

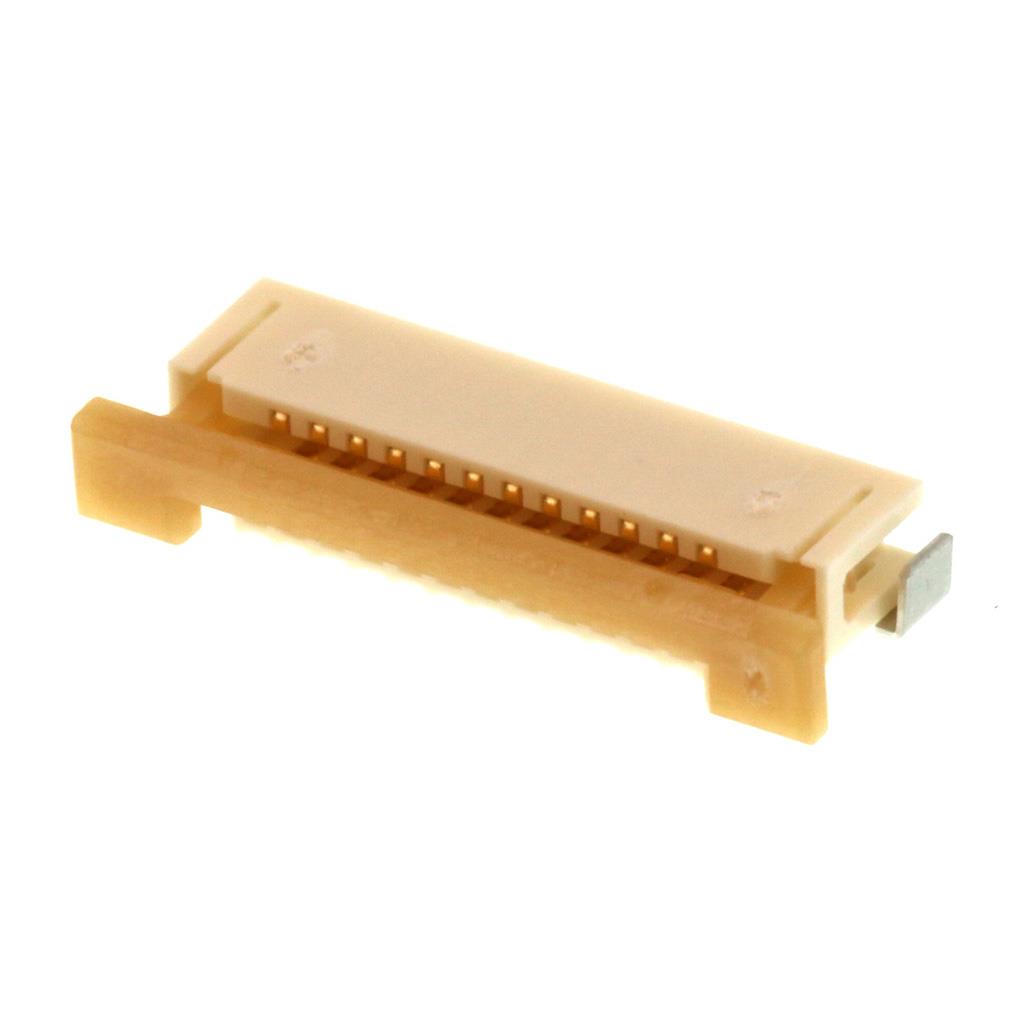

The Molex 0522711890 is an FPC (Flexible Printed Circuit) connector designed for reliable interconnection in space-constrained applications. It features 18 positions on a 1.00mm pitch, with a surface mount, right-angle mounting configuration.



This connector uses bottom-side contacts and a slide lock actuator for secure cable retention. The contacts are made of phosphor bronze with a tin-lead finish, and the housing is constructed from polyamide (PA46) nylon 4/6 with a polyphenylene sulfide (PPS) actuator. It supports a cable thickness of 0.30mm and a tapered cable end type.



Key design features include solder retention for improved board-level reliability and zero insertion force (ZIF) operation, simplifying cable insertion and removal. The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. The housing material has a UL94 V-0 flammability rating.

0522711890 Quick Information

Product Type: FFC/FPC Connector
Canonical Name: Molex 0522711890 FPC Connector, 18 Position, 1mm Pitch, Surface Mount, Right Angle
Subcategory: FFC/FPC Connector Assemblies

0522711890 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0522711890 Estimated Pricing

Qty Low High
3,000+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

0522711890 Features

  • 18 positions with 1.00mm pitch spacing.
  • Surface mount right angle mounting style.
  • Zero insertion force (ZIF) with slide lock.
  • Rated for 50V DC operation.
  • Operating temperature range -40°C to 85°C.

0522711890 Applications

  • Used in consumer electronics and portable devices.
  • Suitable for LCD and display interconnections.
  • Ideal for compact PCB designs requiring FPC.

0522711890 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0522711890 have?

It has 18 positions.

What is the pitch of this FPC connector?

The pitch is 1.00mm.

What is the mounting type for this connector?

Surface mount, right angle.

What is the voltage rating of the Molex 0522711890?

50V.

Does this connector have a locking feature?

Yes, it has a slide lock.

What is the operating temperature range?

-40°C to 85°C.
