| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
234 pcs
|
234 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

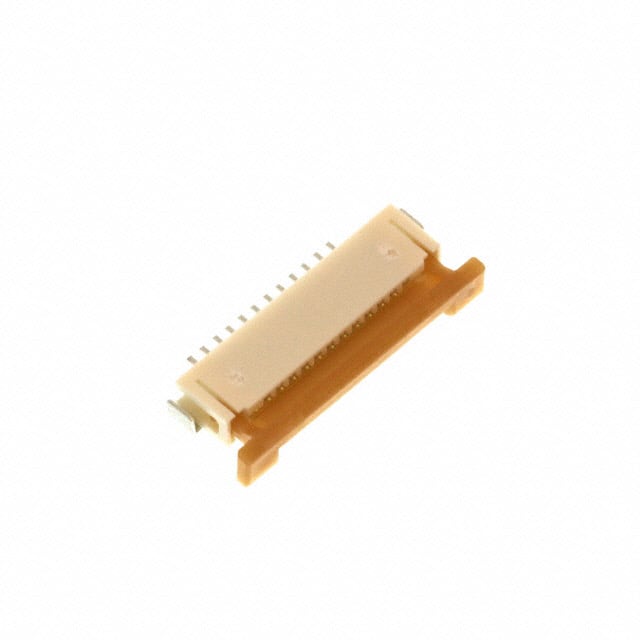

The Molex 0522711279 is a 12-position FPC (Flexible Printed Circuit) connector with a 1.00mm pitch. It features a right-angle surface mount design with bottom contacts, making it suitable for compact PCB layouts. The connector utilizes a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable retention.
The contacts are made of phosphor bronze with a tin bismuth finish, ensuring reliable electrical connections. The housing is constructed from polyamide (PA46) and the actuator from polyphenylene sulfide (PPS). The connector includes solder retention features for improved mechanical stability during assembly.
Electrical ratings include a voltage rating of 50V and an operating temperature range of -40°C to 85°C. The housing material meets UL94 V-0 flammability rating. The connector accepts FPC cables with a thickness of 0.30mm and has a height above board of 3.00mm.
12 positions.
1.00mm.
50V.
Surface mount, right angle.
-40°C to 85°C.
Slide lock.
UL94 V-0.
