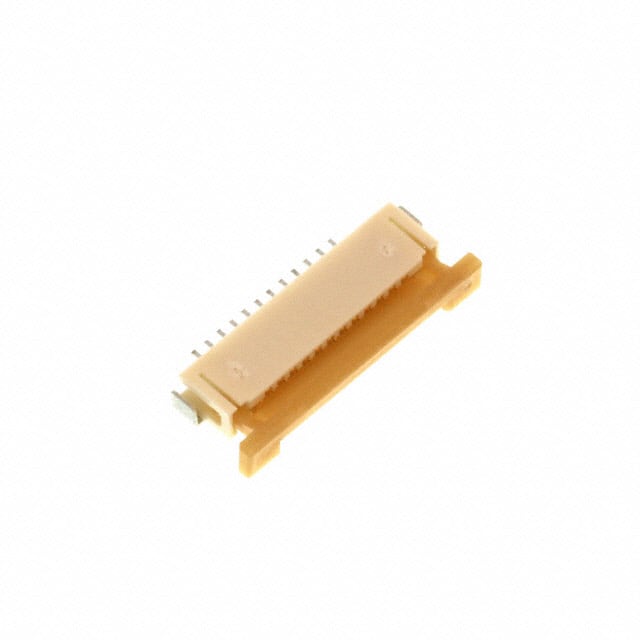

The Molex 0522711269 is a 12-position FPC (Flexible Printed Circuit) connector featuring a 1.00mm pitch and bottom contact design. It supports 0.30mm thick FFC/FPC cables with tapered cable end type for easier insertion.
This connector employs a slide lock mechanism for secure cable retention and supports Zero Insertion Force (ZIF) operation. The housing is made of Polyamide (PA46) and the actuator is Polyphenylene Sulfide (PPS), providing durability. Contacts are phosphor bronze with gold finish for reliable conductivity.
It is rated for 50V operating voltage and an operating temperature range of -40°C to 85°C. The material flammability rating is UL94 V-0. This connector is RoHS3 compliant and REACH unaffected (unverified). The MSL is 1 (Unlimited).
The mounting type is surface mount, right angle, with solder termination. Solder retention features help maintain alignment during reflow. The height above board is 0.118" (3.00mm).
