| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,075 pcs
|
1075 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

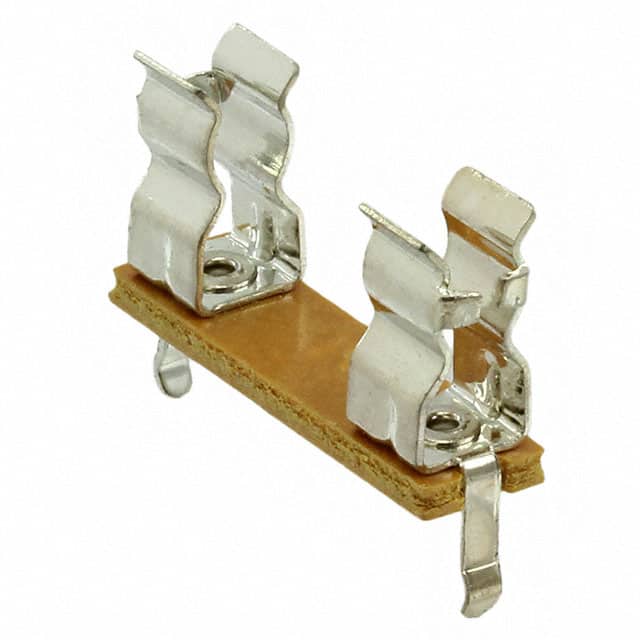

The Littelfuse 05200002H is a single-circuit fuse block designed to accept 5mm x 20mm cartridge fuses. It is rated for 6.3A at 250V and features a through-hole mounting style with PC pin termination for secure soldering to a printed circuit board.
The fuseholder is oriented horizontally, allowing for low-profile installation. The contact material is spring brass with a tin finish, providing reliable electrical connection and corrosion resistance. This block is suitable for use in a variety of circuit protection applications where a standard 5mm x 20mm cartridge fuse is required.
This fuse block accepts 5mm x 20mm cartridge fuses.
The current rating is 6.3 A.
The voltage rating is 250 V.
It is mounted through hole with PC pin termination.
The orientation is horizontal.
