| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,038 pcs
|
10038 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contacts | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

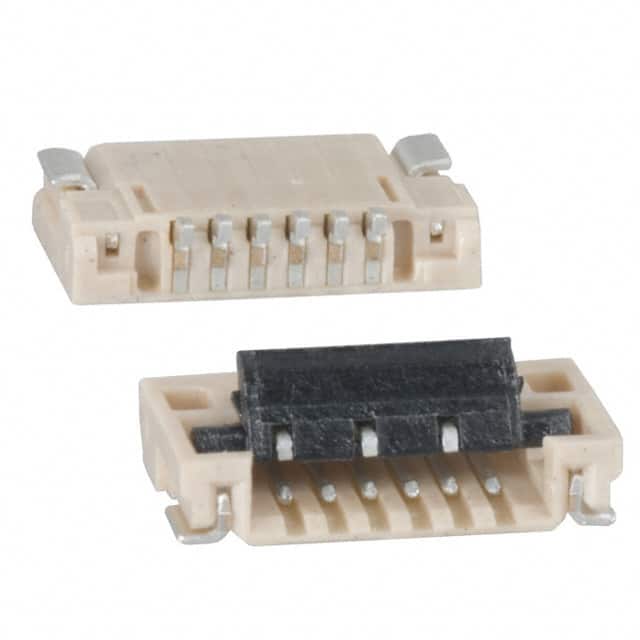

The Molex 0514410693 is a 6-position FFC/FPC connector designed for reliable flat flexible cable interconnections. It features a 0.5mm pitch and bottom contact configuration, making it suitable for compact electronic assemblies. The connector uses a ZIF (Zero Insertion Force) flip lock actuator for easy cable insertion and secure retention. It is rated for 50V and operates over a temperature range of -20°C to 85°C. The housing is made of liquid crystal polymer (LCP) with glass filling, and the actuator is polyphenylene sulfide (PPS) with glass filling, both meeting UL94 V-0 flammability rating. Contacts are phosphor bronze with tin bismuth finish. The connector includes solder retention features for reliable surface mount soldering. It accepts FFC/FPC cables with a thickness of 0.30mm and supports straight or tapered cable ends. The height above board is 1.12mm, enabling low-profile designs.
6 positions.
0.5mm.
50V.
Surface mount, right angle.
-20°C to 85°C.
Flip lock (ZIF).
