Mfr Part #:

0512812694

Name: 0512812694
Brand: Molex
SKU: 0512812694

Mfr Name: Molex

Description:

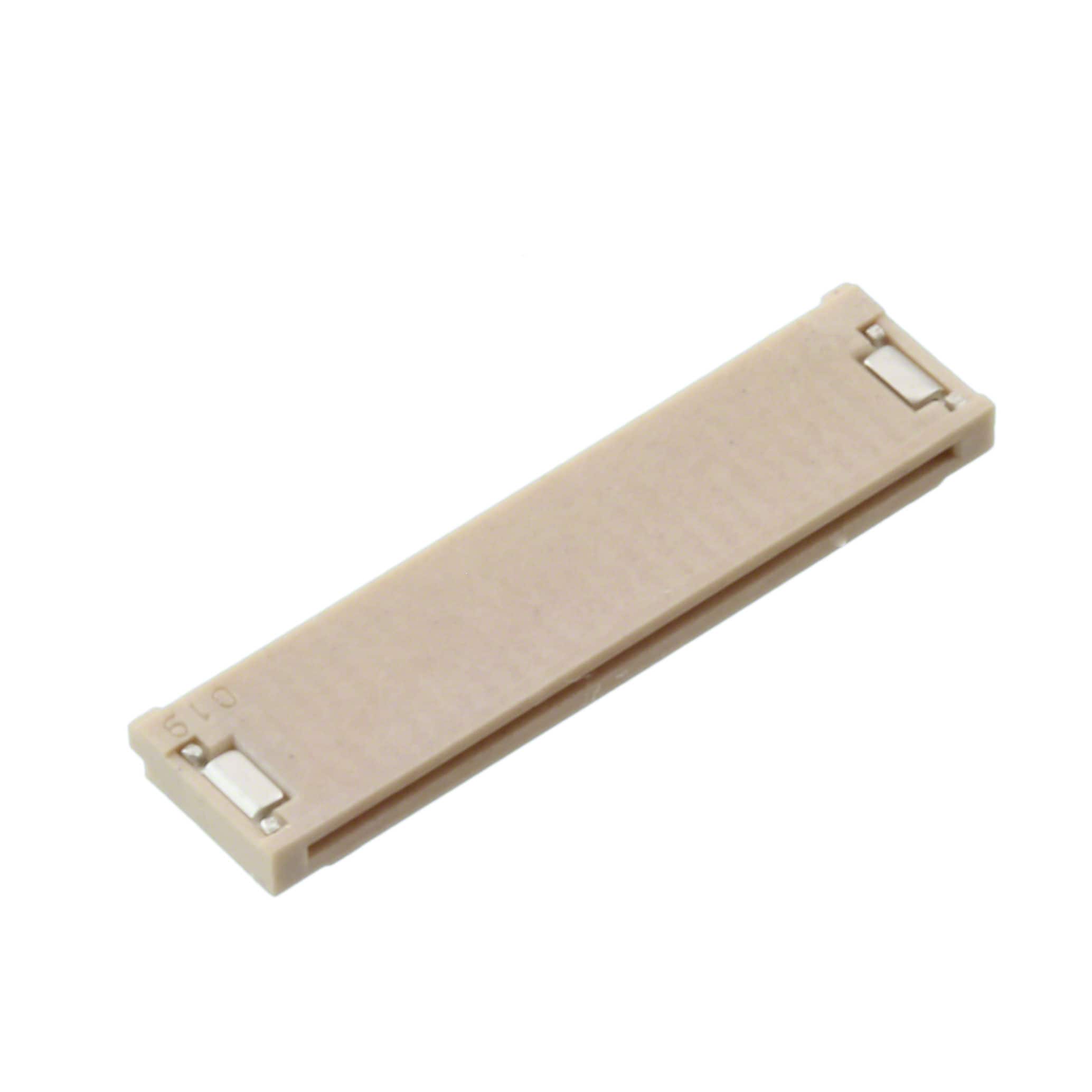

CONN FFC FPC 26POS 0.5MM R/A

Stock on Request

0512812694 Description

Short technical summary and product information.

CONN FFC FPC 26POS 0.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0512812698

Molex

CONN FFC FPC 26POS 0.5MM R/A

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Molex
Cable End Type	Straight, Tapered
Connector	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Solder Retention
Flat Flex Type	FFC, FPC
Height Above Board	0.047" (1.20mm)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Operating Temperature	-20°C ~ 85°C
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
