| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,894 pcs
|
8894 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

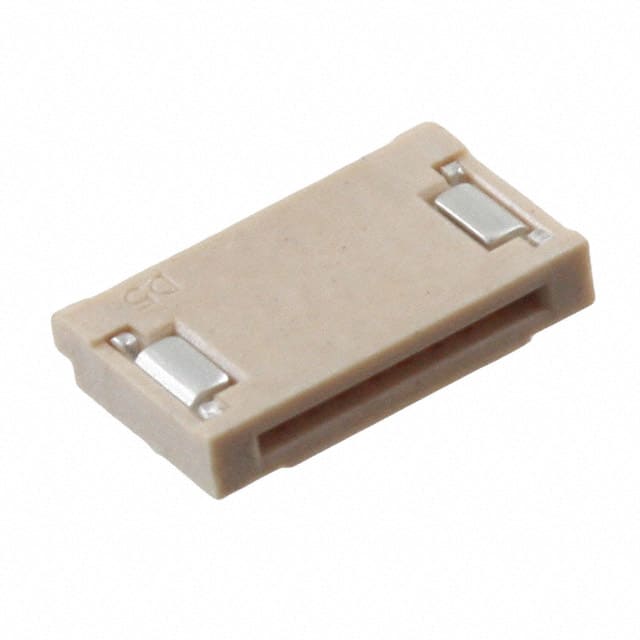

The Molex 0512810894 is a right-angle surface mount FFC/FPC connector designed for reliable interconnections in space-constrained applications. It features 8 positions with a 0.5mm pitch, making it suitable for high-density flex circuit connections.
The connector is constructed with a liquid crystal polymer (LCP) housing that is glass-filled and rated UL94 V-0 for flammability. Contacts are made of phosphor bronze with a gold finish, providing excellent conductivity and corrosion resistance. The operating temperature range is -20°C to 85°C, and the voltage rating is 50V.
This connector supports both straight and tapered cable ends, and the contacts are located on both top and bottom. The height above board is 1.20mm, and it accommodates FFC/FPC cables with a thickness of 0.30mm. The solder retention feature ensures secure attachment during soldering and operation.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.12 | $0.12 |
| 6,000+ | $0.11 | $0.11 |
| 9,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
0.5mm (0.020").
50V.
Surface Mount, Right Angle.
-20°C to 85°C.
Gold.
UL94 V-0.
