| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage |

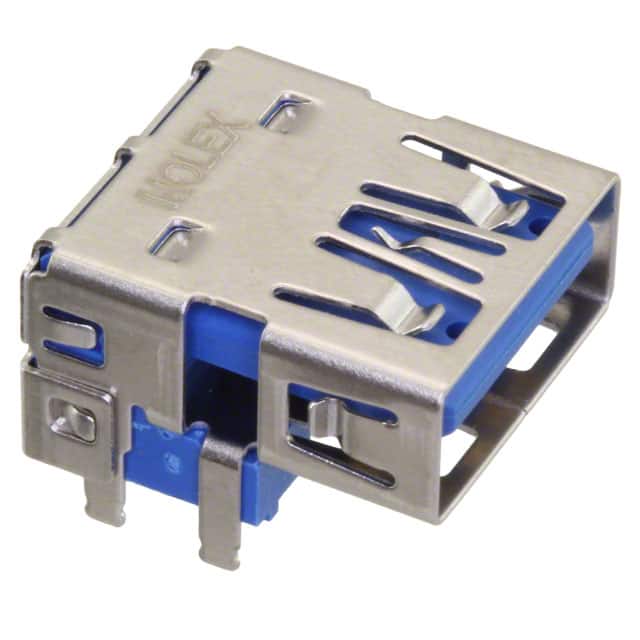

The Molex 0483910003 is a USB-A (USB TYPE-A) receptacle connector designed for high-speed data transfer applications. It supports USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0 Superspeed) specification, enabling data rates up to 5 Gbps. The connector features 9 contacts in a single port configuration.
This receptacle is through hole mounted with a right angle orientation, making it suitable for horizontal PCB mounting. It is fully shielded to reduce electromagnetic interference and includes a board lock feature for secure attachment to the circuit board. Termination is via solder connections.
The connector is rated for a current of 0.25A on signal contacts and 1.8A on power contacts, with a voltage rating of 30VAC/DC. It is designed for 5000 mating cycles and operates over a temperature range of -20°C to 85°C.
USB-A (USB TYPE-A) Receptacle.
9 contacts.
USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0 Superspeed).
Through Hole, Right Angle, Horizontal mounting.
0.25A on signal contacts and 1.8A on power contacts.
-20°C to 85°C.
5000 mating cycles.
