| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,390 pcs
|
2390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Agency Approvals | |
| Application | |
| Applications | |
| Approval Agency | |
| Body Color Code | |
| Body Material | |
| Breaking Capacity @ Rated Voltage | |
| Breaking Capacity AC | |
| Breaking Capacity DC | |
| Cold Resistance | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Fuse Type | |
| Height | |
| Industrial Grade | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

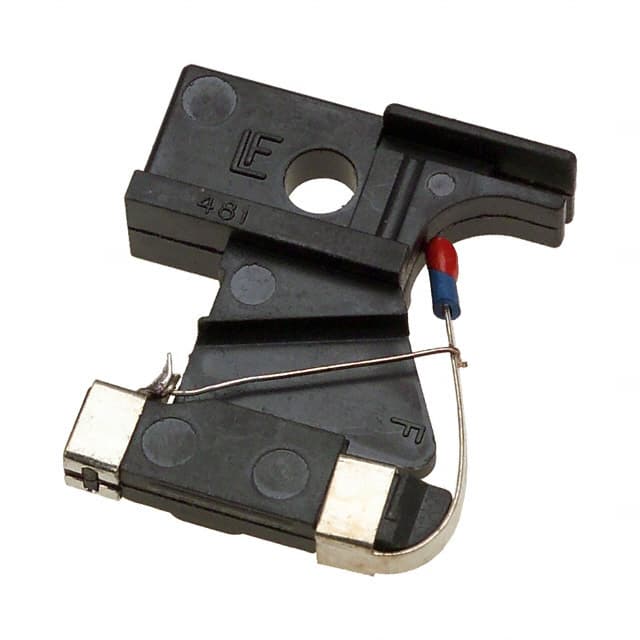

The Littelfuse 0481015.HXL is a 15A fast blow alarm indicating fuse from the 481 series. It is rated for 125VAC and 125VDC operation with a breaking capacity of 300A at 125VAC and 200A at 125VDC. The fuse has a cold resistance of 0.0058 ohms and a melting I2t of 900 A²s. It operates over a temperature range of -55°C to 125°C.
The fuse body is constructed of black polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. The contacts are made of bright alloy-plated beryllium copper. The body color code is blue/red, indicating the 15A rating. The fuse requires a holder for mounting and has dimensions of 16.9mm length, 5.8mm width, and 19.6mm height.
This fuse is designed for telecom applications and provides visual indication of a blown fuse via an alarm indicator flag. It is RoHS compliant and carries CSA and UR agency approvals. The package type is alarm indicator, making it suitable for applications where quick identification of a failed fuse is needed.
15A.
125VAC/125VDC.
300A at 125VAC and 200A at 125VDC.
Fast blow.
Alarm indicator package.
-55°C to 125°C.
CSA and UR.
